6" x 2' Drop Tile Speaker Package

DT6
Availability: In stock
MSRP (USD): $75.99/each
Must purchase in multiples of 2
  • UL Listed
  • CUL
  • 70V100VCAPABLE
    DESCRIPTION

    Installer friendly AtlasIED DT6 provides clear paging and background music in a labor saving package. Ideal for use in shopping malls, department stores, and anywhere large quantities of speakers are to be utilized.

    The AtlasIED DT6 6" x 2' drop in speaker system simplifies speaker installation by providing an all in one speaker package for use in acoustic ceiling grids. The system includes the speaker / transformer, enclosure, and grille. Enjoy clear, crisp paging and background music from the installation friendly DT6 without compromising building cosmetics.


    FEATURES
    • All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce Installation Time and Costs
    • Solid White Panel with Punched Speaker Grille Blends in with Most Acoustic Ceiling Tiles
    • Standard 3" Speaker with Built-In 25V / 70.7V Transformer
    • UL1480 / UL2043

    SPECIFICATIONS
    Frequency Response 125Hz - 8kHz
    Dispersion 135°– 2kHz Octave Band (-6dB)
    Sensitivity 87dB
    Speaker 3" Cone Type
    Magnet Weight 5oz (141g)
    Length 23.9" (607mm)
    Width 5.97" (151.6mm)
    Depth 4.2" (106.7mm)
    Weight 4.2lbs (1.9 kg)
    Color White
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

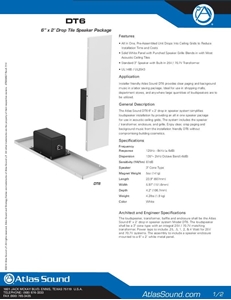

    DT6 Datasheet (2 pages)
    DT6
    DT6 Revit Drawing
    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    This tool is not suitable for sound masking. For assistance with sound masking, please complete our Sound Making Design Request form

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
