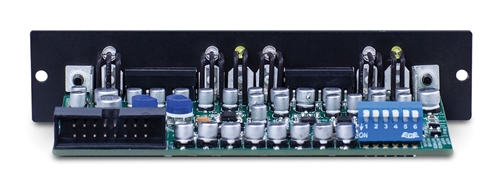

Analog Mixer Accessory Card for DPA Amplifiers

Availability: In stock
Your Price:

    The DPA-AMIX accessory card is designed to work in conjunction with DPA Series amplifiers that include a rear panel accessor card slot. The unit features 4 inputs, two mic/line inputs and two auxiliary line inputs. The mic/line inputs are user selectable and include Phantom power, 120Hz Hi Pass filter and a variable limiter on both inputs. The two auxiliary inputs feature a mono active summing circuit that gives the ability to connect two stereo sources to the amplifier simultaneosly. All inputs have separate level controls and signal and clip LEDs.

    • 2 Balanced Mic / Line Input
    • 2 Summed Mono or 1 Stereo or AUX Line Inputs
    • Switchable 24V Phantom Power
    • 2 Variable Input Limiter on Mic Inputs
    • Assignable 120Hz / 12dB Hi-Pass Filter for Mic / Line Inputs
    • Recessed Level Controls
    • Input Signal & Clip Indicator LEDs

    Connector Type Removable
    Frequency Response 20Hz - 20KHz +/- 1dB
    THD .06% @ 1KHz
    Height 0.97" (2.46cm)
    Width 4.70" (11.94cm)
    Depth 2.5" (6.3cm)
    Weight 2.6oz (0.07kg)
    Warranty Period 60 months from date of purchase

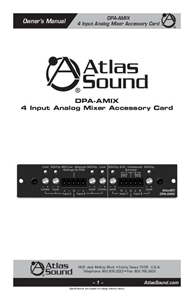

    DPA-AMIX Owners Manual (12 pages) DPA-AMIX Owners Manual (12 pages)
