DIRECTOR® System Management Software

DIRECTOR®
    DESCRIPTION

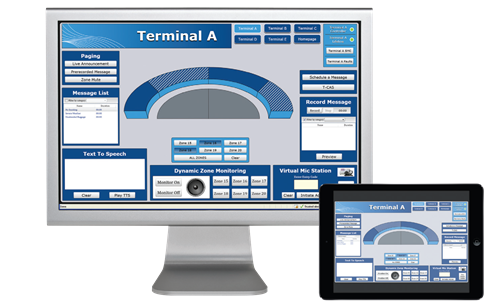

    IED Director® is a management application that provides a comprehensive application-specific interface to your IED GLOBALCOM®.IP system. The software provides an easily accessible view of your overall system status and makes system operation very easy through an intuitive and fully customized graphical user interface. It provides a real time display of announcement activity and system status. Integrated display of system faults allows you to quickly isolate problems within the system. The graphical nature of the interface provide a wide range of user interactivity. The system can be viewed at a less detailed overview or drill down to display and interact with individual zones.

    IED Director® is the ideal addition to your GLOBALCOM®.IP system for system management in complex facilities such as large airports, public transportation systems, industrial campuses or retail centers.


    FEATURES
    • Launch prerecorded messages
    • Queue mic stations for live announcements
    • Zone/zone group selection
    • Record and store audio messages with visual counterpart
    • Schedule prerecorded messages
    • Announcement logging
    • Support for multiple Windows Users
    • Fault monitoring and logging
    • Monitor controller and lifeline status
    • Create and store text-to-speech messages
    • Send mic station entry codes for launching actions and events
    • Trigger events from external sources (contact closures)
    • Create and save announcement templates with variables
    • Create and store visual messages with font style editing (italics, bold, flashing, etc.)
    • Customized filters for fault monitoring
    • Customized filters for announcement logging
    • Control background music levels

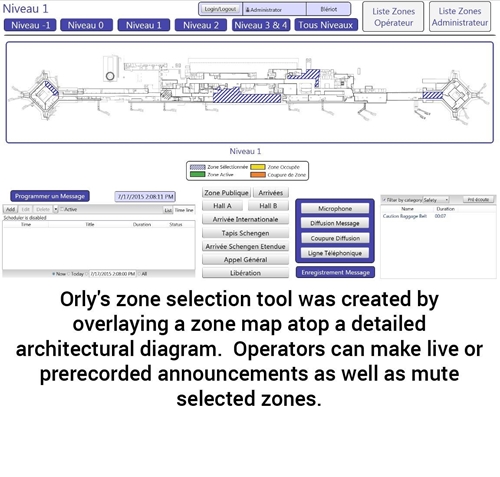

    • Customized graphical zone map for zone selection
    • Zoom + Pan map animation
    • Support for multiple controllers
    • Multiple user profiles with unique permissions

    SPECIFICATIONS
    Processor Required 1.2GHz (optimum: dual core)
    RAM Required Minimum 256MB for the application (optimum: 2GB system RAM)
    Hard Drive Required 100MB (optimum: 500GB drive)
    Graphic Card Requirements Hardware support for Direct X9
    Network Requirement 100MB Ethernet
    Libraries .Net Framework 4.0
    Operating System Windows® XP 32bit Service Pack2, Windows® Vista® 64bit, Windows® 7 64bit
    Graphics Driver DirectX9
