8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer

C803AT167
Availability: In stock
MSRP (USD): $141.99
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

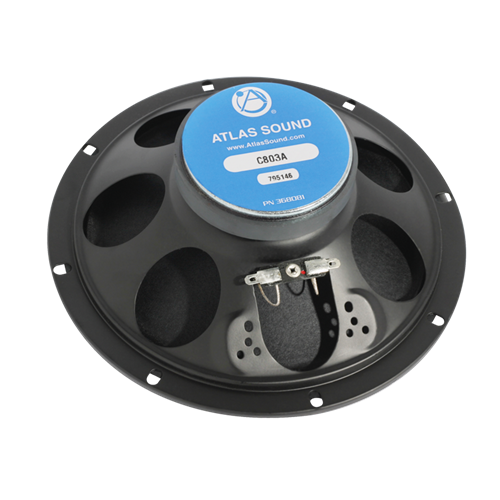

    Model C803AT167, A high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer

    Model C803AT167 utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 40Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

    The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).

    Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.


    Features
    • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
    • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
    • Offers Proven Performance with Wide Frequency Response
    • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 98dB (peak), 95dB (avg)
    Frequency Response 40Hz - 15kHz
    Power Taps 4, 8, & 16 Watts
    Dispersion 120°
    Depth 5 1/8" (13.0302 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.75 lbs (2.15 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase
