Fire Rated 8" Dual Cone Speaker with 4-Watt 25V/70V Transformer, Enclosure, and Baffle

C10AT72FRK
Availability: Call for Availability
Your Price:
$253.99/each
Must purchase in multiples of 6
  • UL Listed
  • BAA
  • TAA
  • 70V100VCAPABLE
    DESCRIPTION

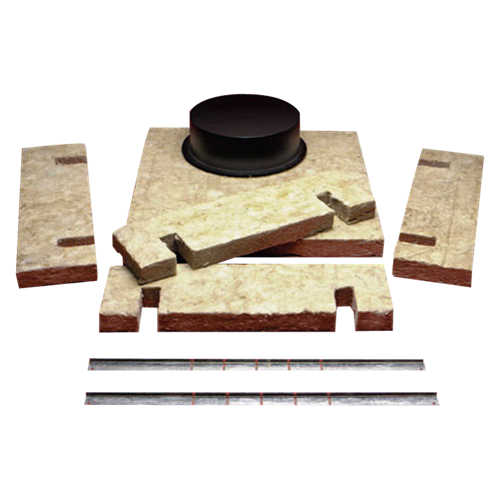

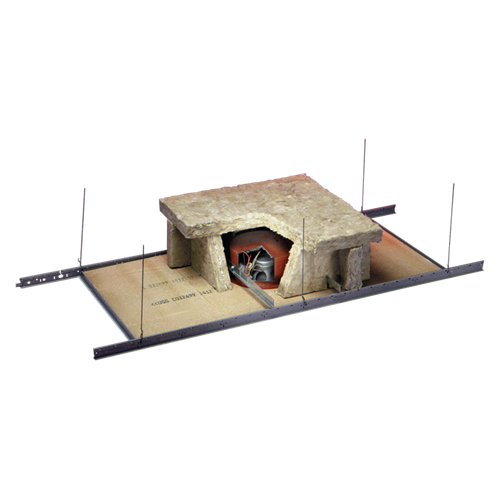

    AtlasIED has developed the only speaker assemblies that are UL classified for fire-resistance in the United States. The C10AT72FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). The C10AT72FRK assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. The C10AT72FRK enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer combinations approved for use in the C10AT72FRK assembly is an FR version of the industry standard AtlasIED Strategy Series C10AT72 speaker.


    Features
    • Assembly Includes Enclosure Fiber Kit
    • Quick Installation & Low Installed Cost
    • Speaker System Has Been Tested in Accordance with UL Standard - Fire Test of Building Construction & Materials, ANSI/UL263
    • UL Certified, Safety Listed to UL263

    SPECIFICATIONS
    Height 10 3/4" (27.305 cm)
    Width 24" (60.96 cm)
    Included Baffle 51-8FR
    Included Speaker 95-8FR
    Included Enclosure C10AT72FR
    Safety Listed ANSI / UL 263 (ASTM E119, NFPA 251)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

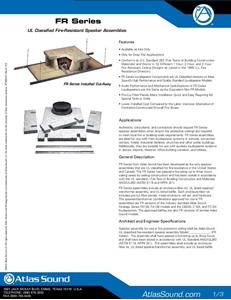

    FR Series Datasheet (3 pages) FR Series Datasheet (3 pages)
