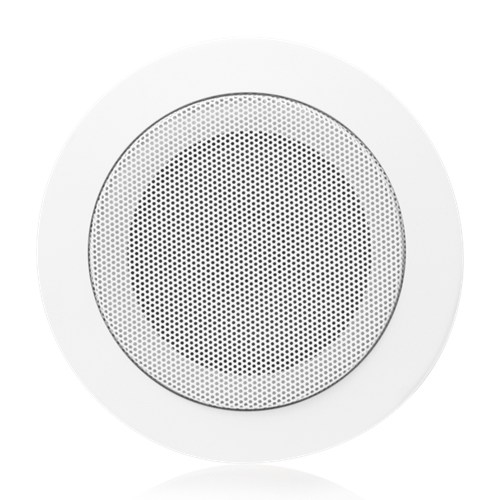

4 inch Speaker Combo Packages FC104T72/T710-4

BT710-4
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
  • 25V/70V Operation
    DESCRIPTION

    Attractive BT710-4 speaker assemblies combine the sound performance of a full range 4" high compliance speaker with the job site convenience and economy of a factory-assembled speaker, transformer and baffle. Model incorporates the popular AtlasIED FC104 high performance speaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer speakers in distributed systems. Speaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V transformer and round with screw mount. BT710-4 package are shipped assembled and ready for installation.


    Features
    • Factory-Assembled Loudspeaker Packages Save Time and Money
    • High Compliance 4" Loudspeaker for Full-Range Audio Reproduction in Background Music and Paging Systems

    SPECIFICATIONS
    Frequency Response 100Hz - 10kHz
    Sensitivity 94dB (at 1W/1m)
    Power Taps 70.7V/25V
    Speaker Type High Compliance
    Dispersion 135° / -6dB, 2kHz
    Depth 2 1/4" (5.715 cm)
    Diameter 4" (10.16 cm)
    Shipping Weight 3.33 lbs (1.51 kgs)

    SUPPORT FILES

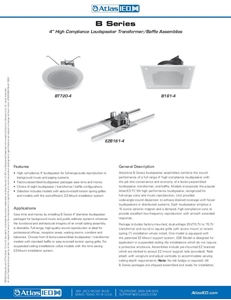

    B-Series Datasheet (3 pages) B-Series Datasheet (3 pages)

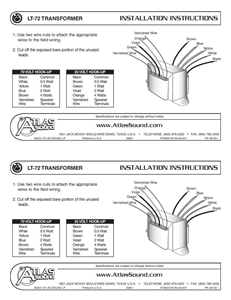

    LT-72 Transformer Installation Instructions (1 page) LT-72 Transformer Installation Instructions (1 page)
