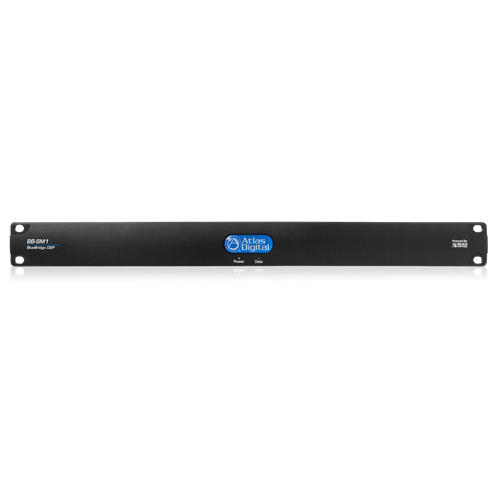

BlueBridge® Site Manager

BB-SM1
  • UL Listed
  • Network Ready

    The BlueBridge® BB-SM1 site manager allows for easy third party hardware integration as well as remote control via web browser, smartphone, or tablet device. It also provides time scheduler, 3rd party control over IP or RS232, and system wide backup.

    FEATURES

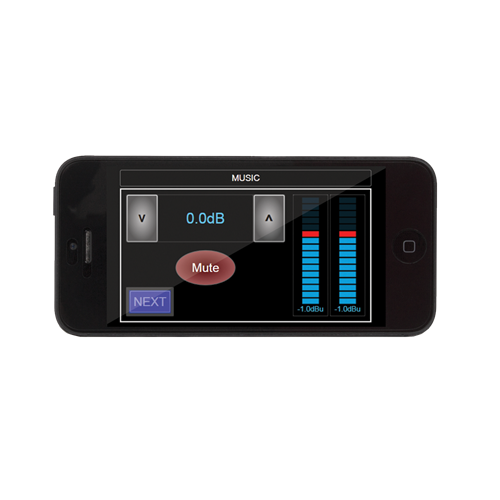

    Control BlueBridge® Devices Using Any Smartphone or Tablet
    Third Party Control Interpreter Simplifies Third Party Control Programming
    Schedule and Control Processor Preset Events Using Date and Tme Event Schedule Programming
    Ethernet Connectivity and Control
    Web Browser Control
    SPECIFICATIONS
    Indicator LEDs Power and Data

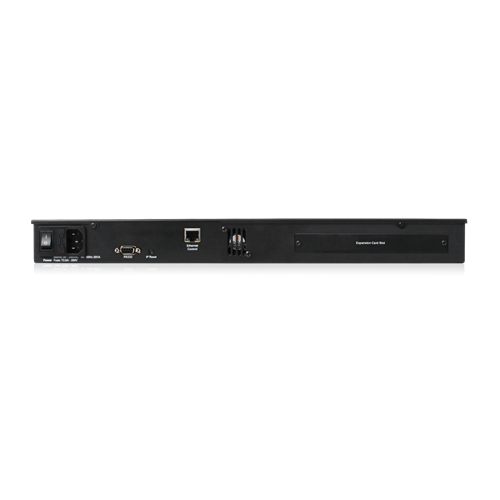

    Rear Panel Connections RJ45 and RS232
    Power 90-240VAC (50-60Hz)
    Width 19" (483mm)
    SUPPORT FILES

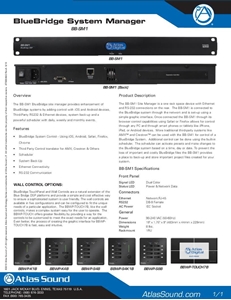

    Data Sheet ATS004642_BB-SM1_Datasheet (1 page) View | Download

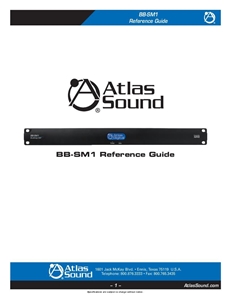

    Owners Manual ATS005142 BB-SM1 Reference Guide (64 pages) View | Download
    Software/Firmware BB-SM1 Firmware Download
    Software/Firmware BlueBridge Designer 5.4.1 Download
    Software/Firmware BlueBridge BluePanel v5.4.1 (All Units) Download
