2 Input x 2 Output - Expansion I/O Box with Dante™


Only available in Asia


    PLEASE NOTE: This product is stocked and shipped from your warehouse in China. This product is ONLY available for sale in Asia.

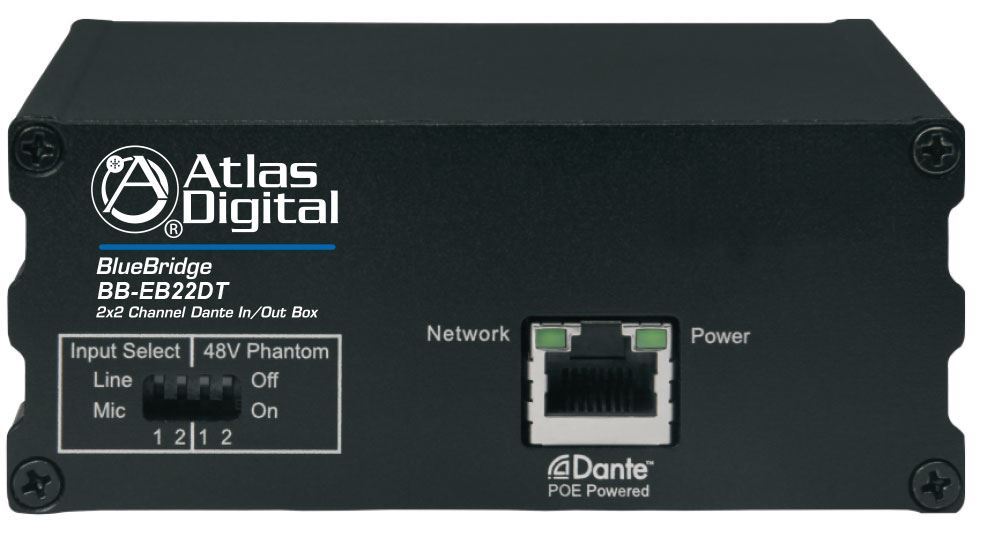

    The BB-EB22DT interface models provide bidirectional Dante™ network audio to analog breakout and analog to Dante input conversion and transport via Dante network audio over Ethernet cable.

    The BB-EB22DT (2x2 analog and 2x2 Dante I/0) model are 1/4 rack chassis size Dante interfaces and include removable surface mount brackets to secure them to a rear rack rail, to rack shelves, or any wall surface. Optionally, you can purchase a rack mount panel and rack four (4) of the BB-EB22DT units side by side in a 19" rack. An external power supply is included but you can also power them using a PoE switch or router.

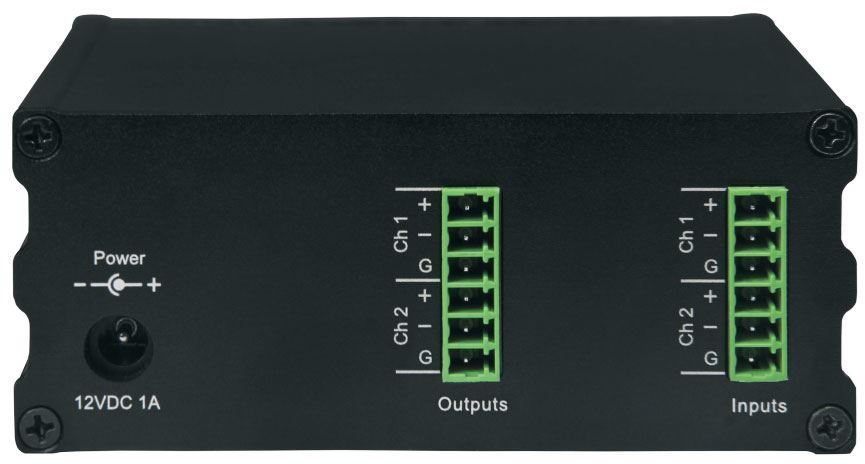

    • 2 balanced I/O mic or line
    • +48V Phantom power per cahnnel
    • Network and Power Status LED

    Phantom Power +48V
    Input impedance > 1.8K ohm
    THD < 0.01% at any gain, input signal 3dB below max
    Power 12V DC @ 1A - Power Supply Included
    Dimensions (HxWxD) 50mm x 117 mm x 117mm

    BB-EB22DT Datasheet (2 pages) BB-EB22DT Datasheet (2 pages)
