Flanged Emergency Horn Speaker with 15-Watt 25V/70V Transformer and Line Supervision Capability

APF-15TUC
Availability: Call Us for Product Availability
MSRP (USD): $175.99
  • UL Listed
  • CSFM Listed
  • 70V100VCAPABLE
  • IP55
    DESCRIPTION

    APF Series voice control speakers are equipped with a compression driver to provide up to 15 watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration. APF Series speakers may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting speakers into a 5 1/2" deep opening or recessed enclosure. Units will facilitate AtlasIED L20 Serie grilles, enclosures and mounting rings (refer to SL2-1372). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount speakers into 8" diameter baffles.

    Models include a built-in 25/70.7V Vari-Tap transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit.

    A built-in, 5 mfd capacitor is provided on Model APF-15TUC for line supervision. Model APF-15TU is not equipped with a capacitor. All units are finished in grey baked epoxy.

    All models meet or exceed UL Standard 1480 for Fire Protective Speakers and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F).The all-metal, environmentresistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse and corrosion. Models are also California State Fire Marshal Listed.


    FEATURES
    • 15-Watt High-Efficiency Compression Driver
    • All Metal, Vandal and Environment-Resistant Construction for Indoor/Outdoor Use Indoor/Outdoor Use Indoor/Outdoor Use
    • Built-In Vari-Tap® Transformer for Easy Impedance Selection
    • Compatible with Round or Square Decorative Baffles
    • Flange and Recessed Mounting Provisions for Use on Interior/Exterior Walls and Ceilings
    • Recommended for High-Intelligibility Paging, Intercommunication, and Signaling
    • UL Listed For Fire Protective Signaling Systems
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Frequency Response 600Hz - 14kHz
    Sensitivity 104dB
    Safety Listed UL 1480
    Dispersion 95°
    Operating Temperature Range -40 to 70C
    Depth 5 3/16" (13.18 cm)
    Diameter 5 5/8" (14.29 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Operating Temperature Range -40C to 70C
    Operating Temperature Range -40C to 70C

    SUPPORT FILES

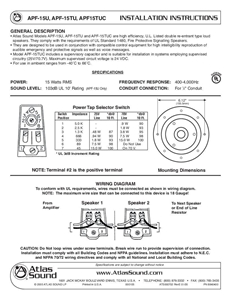

    APF-15 Installation Instructions (1 page) 442 KB

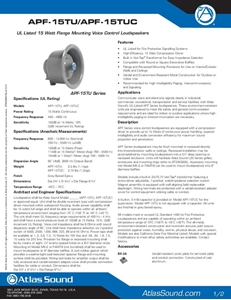

    APF-15TU Series Datasheet (2 pages) 361 KB

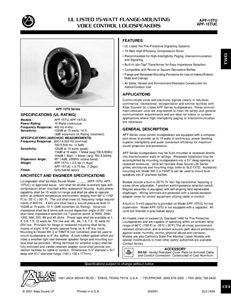

    UL Listed 15-Watt Flange-Mounting Voice Control Loudspeakers Datasheet (2 pages) 76 KB
    APF-15TUC_VP161-APF CAD Drawing 696 KB
    APF-15TUC CAD Drawing 339 KB
    APF-15TUC_L20-101 CAD Drawing 594 KB
    APF-15TUC_L20-100 CAD Drawing 566 KB
