15A Power Conditioner and Distribution Unit

AP-S15

  • UL Listed
  • ETL
  • CETL
    DESCRIPTION

    The AP-S15 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.


    Features
    • 9 Total Outlets

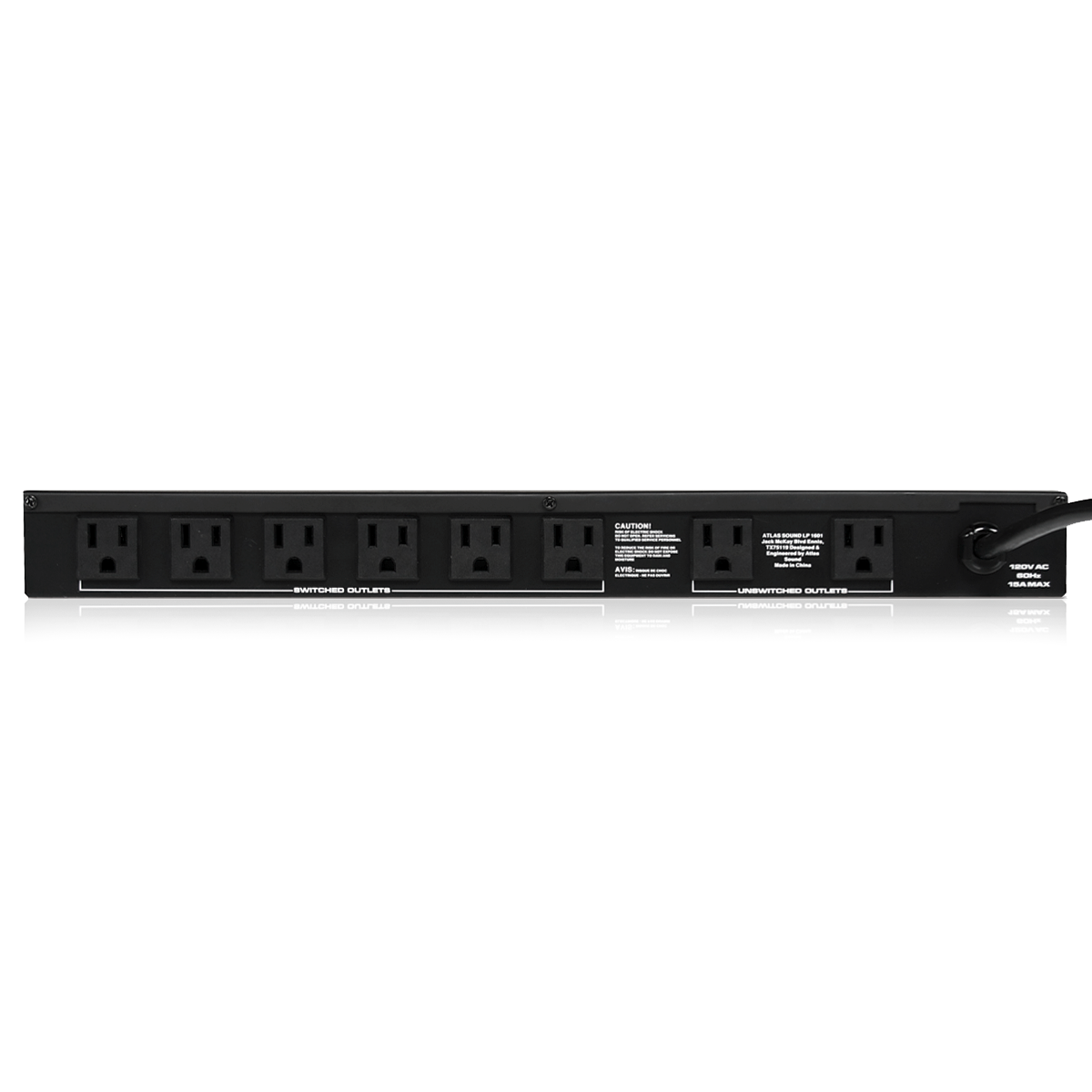

    • 8 Rear Panel Outlets: 6 Switched and 2 Unswitched

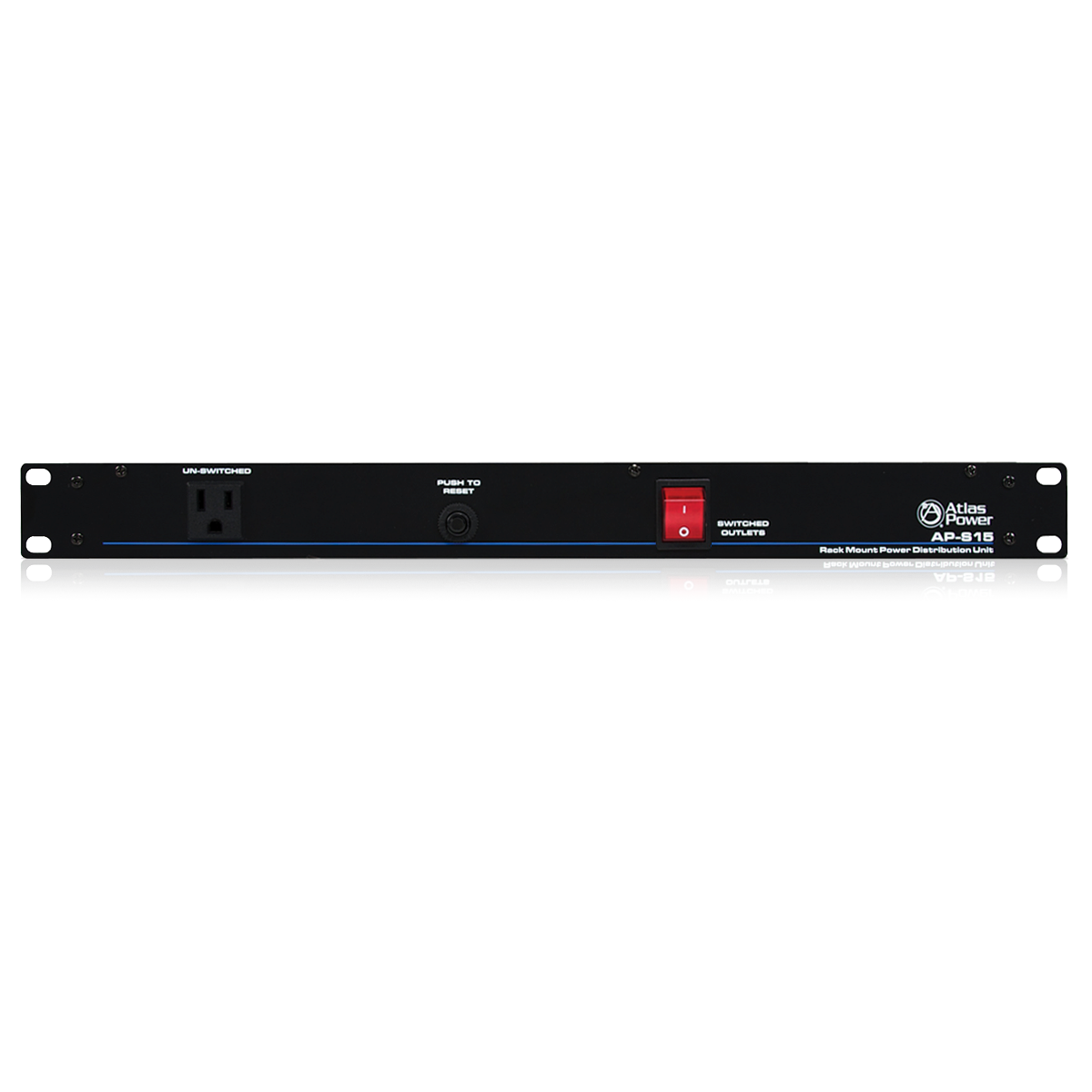

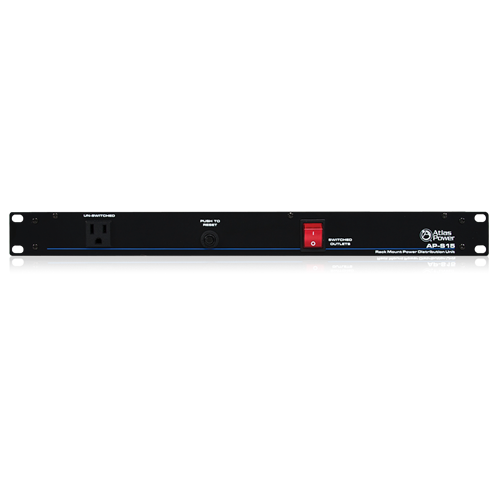

    • 1 Front Panel Outlet, Unswitched
    • Radio Frequency and Electromagnetic Interference Filtering
    • Circuit Breaker Protection @ 15A
    • Spike Suppression Up to 6000V

    SPECIFICATIONS
    Current Rating 15 Amps
    Certified to Safety Listing MET (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Power Consumption 6 Watts
    AC Mains Power Cord 9' (3m)
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 5" (127mm)
    Weight 5 lbs. (2.27 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

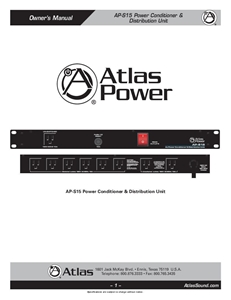

    AP-S15 Owners Manual (8 pages) AP-S15 Owners Manual (8 pages)

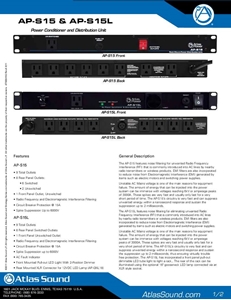

    AP-S15 & AP-S15L Datasheet (2 pages) AP-S15 & AP-S15L Datasheet (2 pages)
