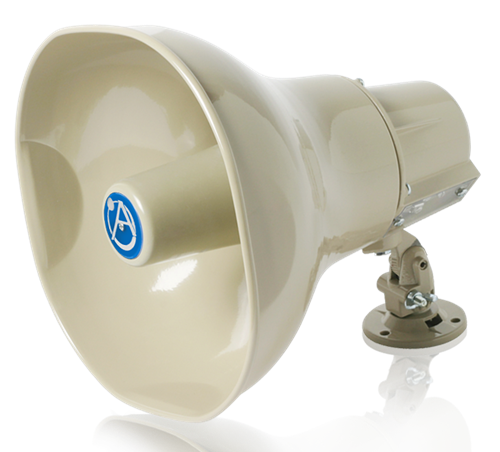

Horn Speaker with 30-Watt 25V/70V/100V Transformer - Beige

Availability: In stock
Your Price:
  • IP34
  • 25V/70V Operation
  • 70V100VCAPABLE

    The  AP-30TC is a double re-entrant speaker which delivers 30 watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency. The AP-30TC operates within a nominal frequency range of 300Hz - 12kHz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.

    The AP-30TC each features an integral transformer to meet a variety of distributed system needs. The AP-30T is equipped with a versatile, 3-way, 25, 70.7, 100V line transformer. Transformer is adjustable using AtlasIED's exclusive Vari-Tap® Connect Center which features a 7-position, watts / impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.

    The trademarked square bell design signifies AtlasIED quality and reliability. The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the speaker on conventional surfaces or by strap-mounting to I-beams or pillars. AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy (standard) or beige epoxy if suffixed with (C) where noted.


    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    • White Finish
    • Environment Resistant for Outdoor & Indoor Use
    • Omni-Purpose Mounting Bracket for Precise Positioning
    • Superior Intelligibility for Voice and Tone Signaling
    • Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
    • U. S. Trademark Design is World Recognized for Quality and Dependability
    • Wide Frequency Response for Optimum Sound Quality

    Frequency Response 300Hz - 12kHz
    Sensitivity 108dB
    Dispersion 60°
    Power Rating 30 Watts
    Operating Temperature Range -40 to 70C
    Height 11" (27.94 cm)
    Width 10" (25.4 cm)
    Depth 10 1/2" (26.67 cm)
    Shipping Weight 6.30 lbs (2.86 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    AP-30T Revit Drawing AP-30T Revit Drawing
    Atlas Sound AP-30T CLF2 Atlas Sound AP-30T CLF2

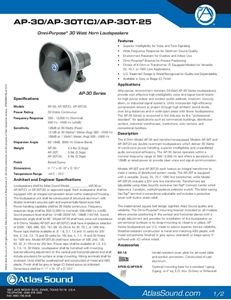

    AP-30 Series Datasheet (2 pages) AP-30 Series Datasheet (2 pages)
