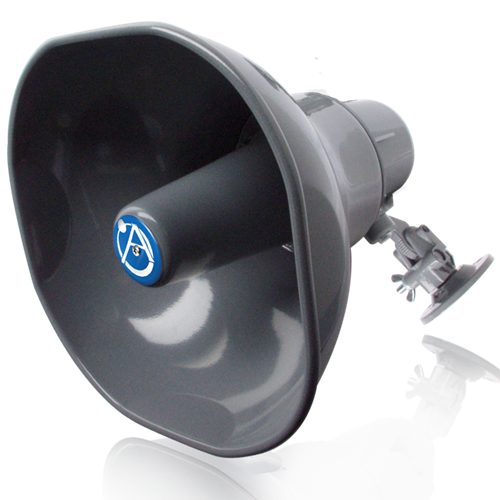

Horn Speaker with 30-Watt 25V/70V/100V Transformer

AP-30T

Availability: In stock
Your Price:
$218.99
  • 25V/70V Operation
  • 70V100VCAPABLE
  • IP34
    DESCRIPTION

    The Model AP-30T is a double re-entrant speakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

    The AP-30T operates within a nominal frequency response range of 300Hz - 12kHz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.

    The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars.

    AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.




    Features
    • Environment Resistant for Outdoor & Indoor Use
    • Grey Finish
    • High-Efficiency Driver with Proven Performance Reliability
    • Omni-Purpose™ Bracket for Precise Positioning
    • Superior Intelligibility for Voice and Tone Signaling
    • World Recognized for Quality and Dependability

    SPECIFICATIONS
    Frequency Response 300Hz -12kHz
    Sensitivity 108dB
    Power Taps 2, 3.8, 7.5, 15, 30 @ 70.7V
    Dispersion 60°
    Operating Temperature Range -40 to 70C
    Height 11" (27.94 cm)
    Width 10" (25.4 cm)
    Depth 10 1/2" (26.67 cm)
    Shipping Weight 6.30 lbs (2.86 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    AP-30T CAD Drawing AP-30T CAD Drawing
    AP-30T Revit Drawing AP-30T Revit Drawing
    Atlas Sound AP-30T CLF2 Atlas Sound AP-30T CLF2
    AP-30T EASE DATA AP-30T EASE DATA
    AP-15T, AP-30T, APC-30T, APR-30T Install Sheet (1 page) AP-15T, AP-30T, APC-30T, APR-30T Install Sheet (1 page)
    AP-30 Series Datasheet (2 pages) AP-30 Series Datasheet (2 pages)
