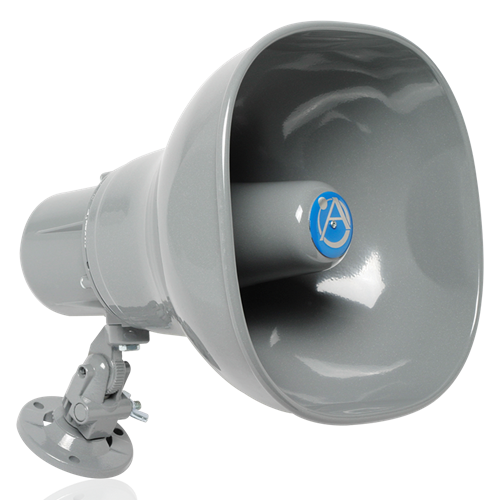

Emergency Signaling Horn Loudspeaker with 15-Watt 25V/70V Transformer and Line Supervision Capability

Availability: Call for Availability
Your Price:
  • UL Listed
  • IP55
  • CSFM Listed
  • 70V100VCAPABLE

    Model AP-15TUC is a double re-entrant speakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-15 Series operates within a nominal frequency response range of 400Hz - 14kHz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

    The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

    A built-in, 5 mfd capacitor is provided for line supervision.

    All models meet or exceed the UL Listed standards for audible signal appliances, standard 1480—Speakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19).

    AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

    • 15-Watt High Efficiency Compression Driver
    • 5 mfd Capacitor for Line Supervision
    • Built-In Vari-Tap® Transformer for Easy Impedance Selection
    • Omni-Purpose Surface Mounting Bracket For Precise Positioning
    • Recommended for High Intelligibility Paging, Intercommunication, and Signaling
    • Vandal-Resistant, Weatherproof Construction
    • UL Certified, Safety Listed to UL1480

    Frequency Response 400Hz - 14kHz
    Sensitivity 106dB
    Power Taps 1, 2, 3.8, 7.5, 15W @ 70.7V
    Dispersion 70°
    Operating Temperature Range -40 to 70C
    Height 8 3/4" (22.22 cm)
    Width 7 7/8" (20.00 cm)
    Depth 9 5/16" (23.66 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase
