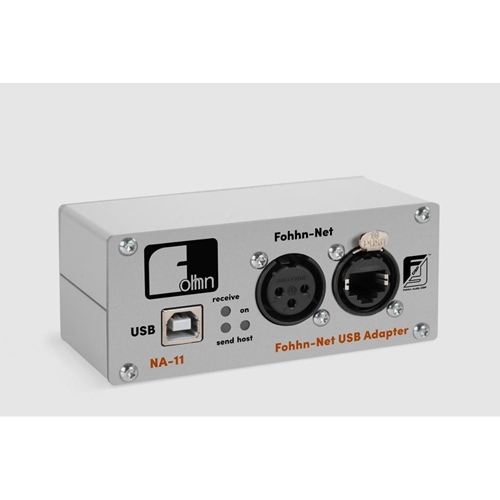

Fohhn-Net USB Adapter

ALS-NA11
    DESCRIPTION

    Remote cable operation with the NA-11 Fohhn-Net USB adapter.
    The NA-11 Fohhn-Net USB Adapter is an essential tool for configurating all devices in a Fohhn-Net via PC.

    Linked via RJ-45 connector or XLR sockets for use of multicore or conventional microphone cables. The NA-11 doesn´t need an installation software and can be used to several PCs. You only have to install the Fohhn Audio Soft user software on your PC before use.

    The Fohhn Control Network (Fohhn-Net).
    The remote control devices are extremely user-friendly and give the user complete control over the audio system from one central location. Individual devices and entire systems can be operated synchronously from one of several devices, opening up a whole range of different application possibilities. All Fohhn active speaker systems, DSP amplifiers and DSP controllers are equipped with two Fohhn-Net network interfaces as standard, which can be used to monitor and remotely operate each individual device. If you are using several Fohhn devices, you can easily interlink and monitor or remotely operate them from a central location.

    The Fohhn-Net system is nothing more than a control network, i.e. no audio data is transferred, only control data. Fohhn-Net can operate a maximum of 254 devices simultaneously via cable at distances of up to 1800 m. At live events, you can use any available microphone cables or your multicore and for fixed installations, you can use conventional telephone or network cables. Bus or star networks are also an option here. A circular cabling arrangement will achieve additional redundancy and ensure that the network will function correctly if interrupted at any point. The Fohhn-Net was designed in line with established industrial standards and is very reliable due to a stable transfer protocol and permanent monitoring (continuous feedback during data transfer).


    SPECIFICATIONS
    Operating Voltage USB 2.0 Full Speed
    Height 1.77" (45mm)
    Width 4.13" (105mm)
    Depth 1.97" (50mm)
    Warranty Period 24 months from date of purchase

    SUPPORT FILES
    FOHHN AudioSoft Software 4.0.1 FOHHN AudioSoft Software 4.0.1
    FOHHN Net Configuration (1 page) FOHHN Net Configuration (1 page)
    FOHHN AudioSoft Software 5.0.3 FOHHN AudioSoft Software 5.0.3
