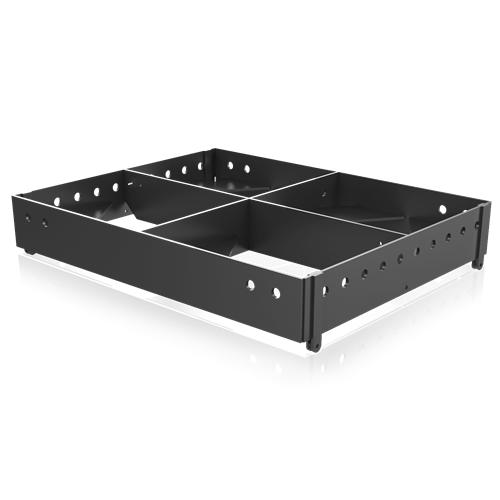

Steel Fly Frame for Use with AL123A-B and AL218A-B Line Array Speakers

  • BAA
  • TAA

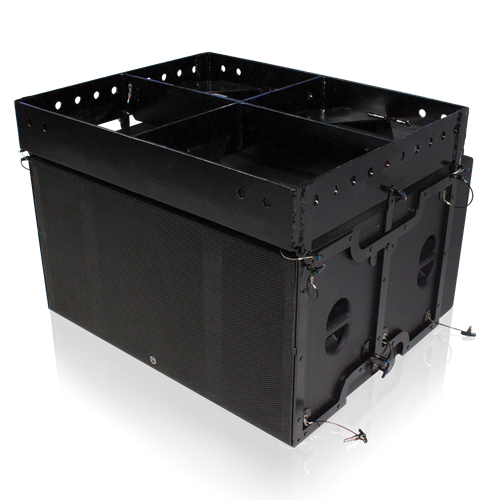

    The large fly frame is designed to be the structural interface between the AL123A-B and/or AL218A-B, and the venue structure where the array is to
    be flown or suspended. It is best to use four points located close to the four corners to suspend the array. Please use the AL123A-B and AL218A-B
    manuals for instructions on how to use and connect the fly frame with the corresponding A-Line product.

    • Welded Steel Construction
    • Designed for Use with AL123A-B and AL218A-B Speakers
    • Maximum Capacity of 2000 Pounds

    Height 6" (152.4mm)
    Width 42.4" (1077mm)
    Depth 33.37" (847.6mm)
    Weight 230 lbs. (104.5 kg)
    Warranty Period 60 months from date of purchase

    AL123LFF-B Install Sheet (1 page) AL123LFF-B Install Sheet (1 page)
