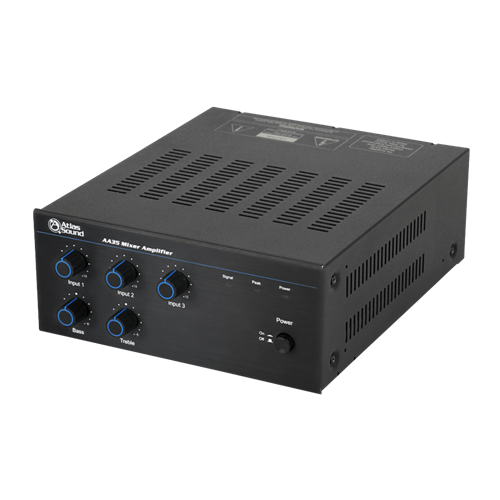

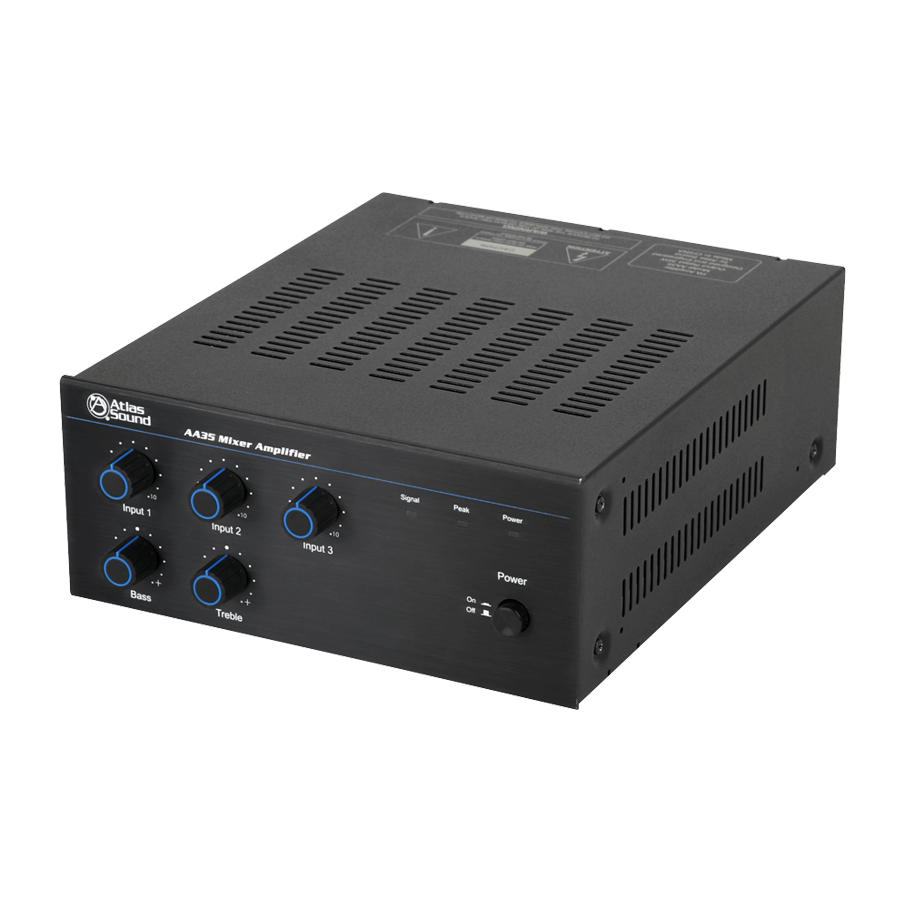

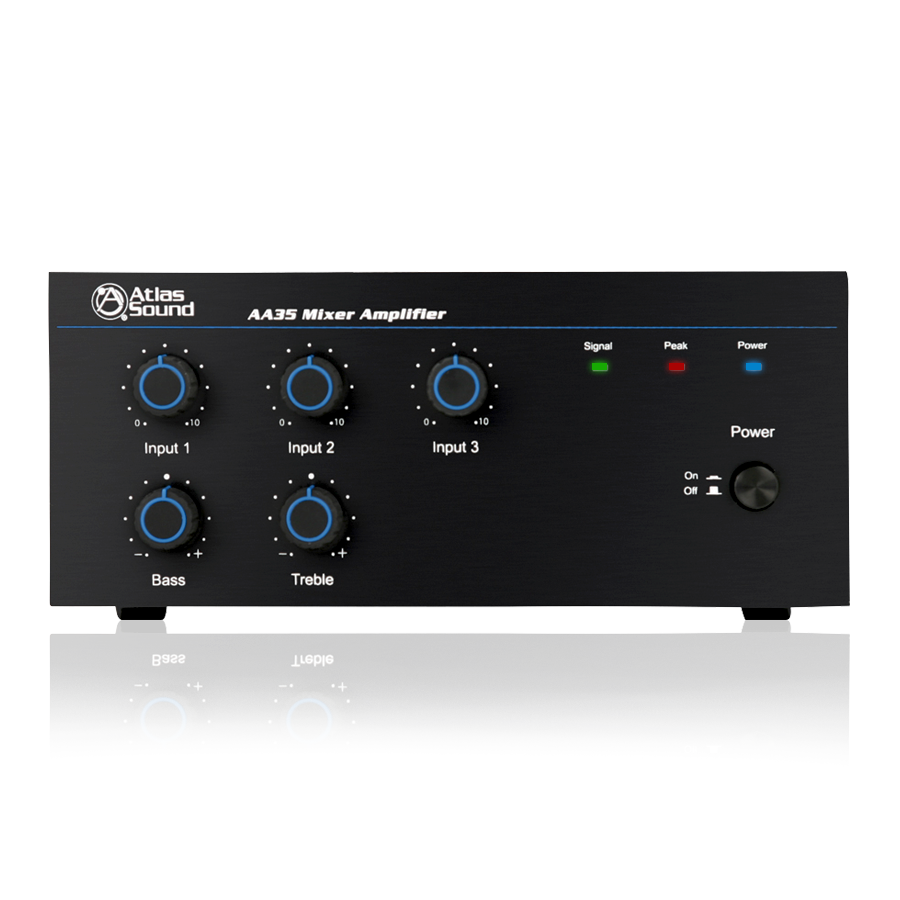

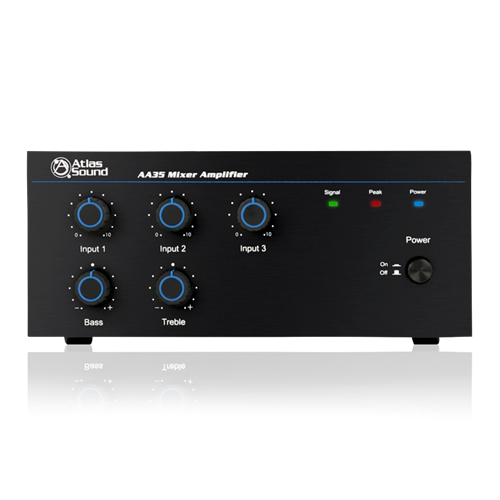

3-Input, 35-Watt Mixer Amplifier

AA35

  • Mount Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
    DESCRIPTION

    This item has been replaced by the AA35G.

    The AtlasIED AA35, a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required.

    The AA35 is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

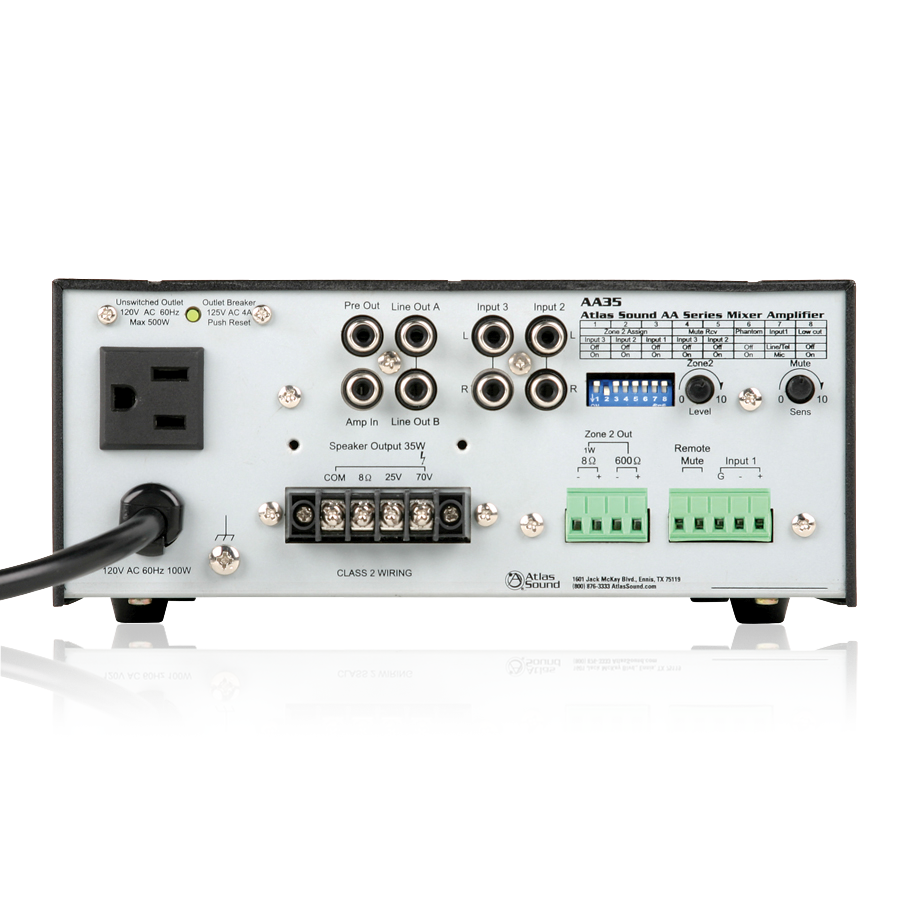

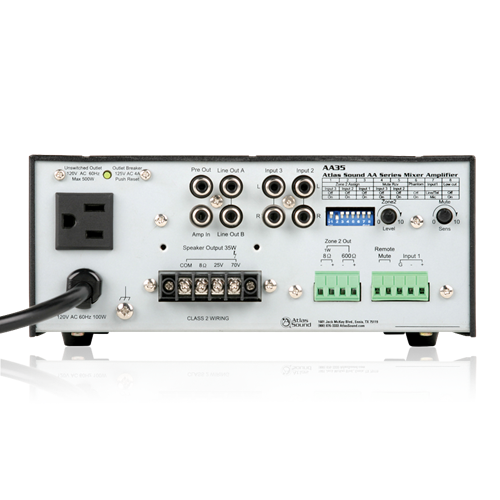

    With one microphone input and two stereo line inputs, the AA35 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 25V, 70.7V, and 8Ω outputs are provided.


    Features
    • 1 Mic In w/Phantom Power
    • 2 Stereo Line Inputs
    • 35 Watts of True Output Power
    • Dual Line Outputs
    • Pre Out/ Power In Patch
    • Remote and VOX Activated Mute
    • Route Any Source Combination or Entire Mix Bus to Zone 2 (MOH Out)
    • Special Low Cut Filter is 6dBu /octave at 400Hz and Also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T

    SPECIFICATIONS
    Frequency Response 50Hz - 20kHz
    Connector Type Phoenix and RCA
    Output Power 35 Watts
    Rack Units 2 high 1/2 wide
    Height 3 11/16" (9.2964 cm)
    Width 8 1/4" (21.0058 cm)
    Depth 10 7/8" (27.6098 cm)
    Shipping Weight 10.20 lbs (4.63 kgs)
    Safety Listed 60065-ROHS 2006 Compliant
    Voltage Compatibility 110V - 120V
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    AA_Amps_Front_Rear AA_Amps_Front_Rear

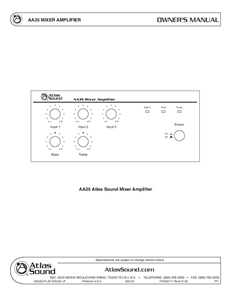

    AA35Manual (24 pages) AA35Manual (24 pages)

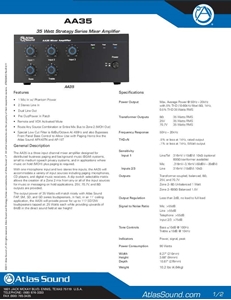

    AA35 Datasheet (2 pages) AA35 Datasheet (2 pages)
