Sound Masking Generator

AA-GPN1200

    DESCRIPTION

    The AtlasIED AA-GPN1200 analog signal generator is ideal to use for many basic Sound Masking systems. The analog topology design eliminates repeating cycles commonly found in other manufactures digital designs. The AA-GPN1200 supports selections between Pink or White noise signals. This generator incorporates a variable balanced output and will deliver a 1V balanced output allowing it to match input circuits of AtlasIED equalizers and amplifiers. Also a variable Hi-Cut filter when engaged, supports most equalizing requirements for most basic Sound Masking systems. The EQ filter operating range is between 1 kHz and 8 kHz with a slope of 6 dB per octave.
    This small but effective generator can be used standalone or rack mounted. If multiple zones are required up to three AA-GPN1200 can be mounted onto a single 1 RU panel. The balanced output connection is via a Phoenix type (Euro block) connector. Rear mounted controls also help prevent unauthorized tampering.


    Features
    • Compact
    • Analog Topology
    • Balanced Output
    • Selectable Between Pink & White Noise
    • Defeatable EQ
    • Variable Hi-Cut Filter
    • Variable Gain
    • Stand Alone or Rack Mountable

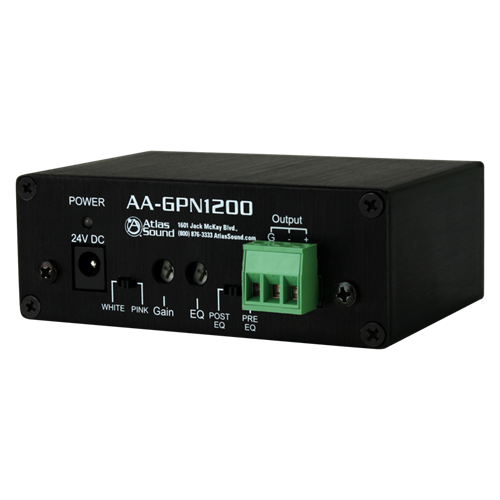

    • Rear Panel Adjustments

    SPECIFICATIONS
    Width 4" (100mm)
    Height 1.75" (45mm)
    PRE EQ 500mV
    Filter Selection White, Pink Noise
    Depth 3.16" (80mm)
    POST EQ 1V
    Line Output Balanced, Phoenix Type Connector
    EQ Control Variable Hi Cut 1kHz - 7kHz, Bypass Switch
    Power Supply UL Rated External 24VDC
    Panel Finish Black
    Rack Mount Panel Width 19" (485mm)
