Single PoE+ IP Addressable IP-to-Analog Gateway with Integrated Amplifier and Rack Mount Kit

IP-ZCM1RMK
Availability: In stock
Your Price:
$1,189.99
  • Software License Required
  • CETL
  • CE
  • FCC
  • BAA
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • GCK Optimized
  • PoE+
  • UKCA
  • PoE Enabled
    DESCRIPTION

    The AtlasIED IPX Series IP-to-analog gateways are perfect for connecting your unified communication platform to off network analog third party systems, including, but not limited to, sending notifications to analog overhead paging, trigger or be triggered by access-control systems, assist to fire alarm, and two-way audio support for video-surveillance, simply plug and play

    AtlasIED IP-ZCM1RMK registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the IP-ZCM1RMK IP–to–Analog Gateways can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

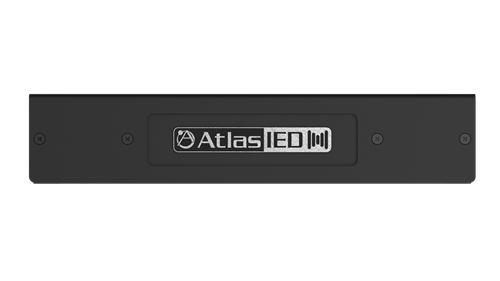

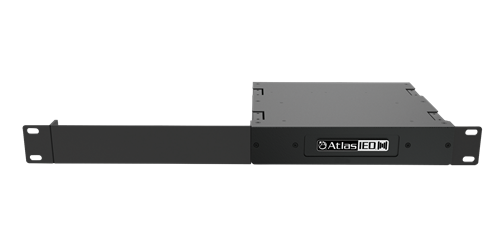

    Model IP-ZCM1RMK includes a rack mount kit for properly mounting the IP-ZCM in a standard width rack.

    Features

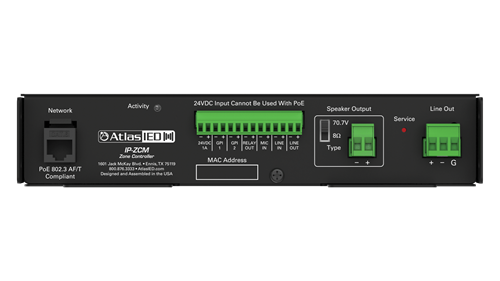

    The IP-ZCM1RMK from AtlasIED consist of a factory assembled PCB control board housed in a rugged and compact 1RU chassis. The unit provides the same addressable end point functionality as an IP speaker or IP phone with the convenience of line level and amplified audio output. This line level output is ideal for use with AtlasIED AA, PA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    In addition to the line level output, the IP-ZCM1RMK provides 1-channel of 15-Watt RMS at 8-ohm or, 70.7V amplified output to drive a small cluster of analog speakers. It also includes 2 GPI Inputs, 1 GPI Output and Microphone input for talk back or listen applications.

    The IP-ZCM1RMK features include Auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed.

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    Features
    • Network Features

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
    • Audio Features

    • Integrated Amplifier 25-Watt Total Power: Primary Speaker Output 8 ohm or 70.7 Volt
    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option
    • Rack Mount Kit Included


    SPECIFICATIONS
    Power Rating 15 Watts RMS into an 8Ω Load
    Inputs RJ-45 Female on PCB
    Outputs 8Ω, 25V, or 70.7V
    Power Source IEEE 802.3af or IEEE 802.3at Compliant POE(+) Network Switches / Local 24VDC PSU
    Network Control Multicast Enabled Networks
    Rack Units 1RU
    Height 1.75" (45mm)
    Width 8.5" (215.9mm) IP-ZCM Only / 19" (482.6mm) with Rack Mount Kit
    Depth 8.85" (224.8mm)
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

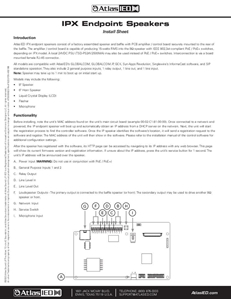

    IPX Series Install Sheet (4 pages) IPX Series Install Sheet (4 pages)
    AtlasIED Discover 1.3.10.0 AtlasIED Discover 1.3.10.0
    IPX Endpoint Firmware Update Guide (1 page) IPX Endpoint Firmware Update Guide (1 page)

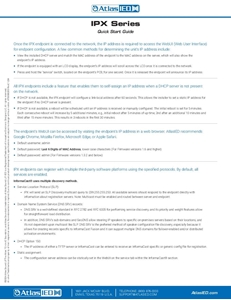

    IPX Endpoint Quick Start Guide (3 pages) IPX Endpoint Quick Start Guide (3 pages)
    IPX System Firmware Release 1.8.0 IPX System Firmware Release 1.8.0

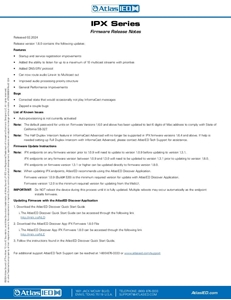

    IPX Series Firmware Release Notes (1 page) IPX Series Firmware Release Notes (1 page)
    IP-ZCM_Drawing IP-ZCM_Drawing

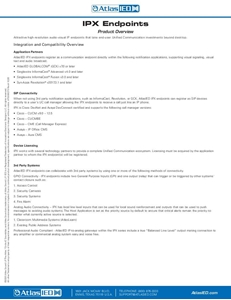

    IPX Product Overview (3 pages) IPX Product Overview (3 pages)
    IPX Endpoint Quick Start Guide (1 page) IPX Endpoint Quick Start Guide (1 page)

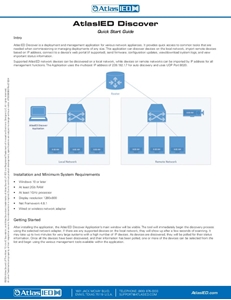

    AtlasIED Discover Quick Start Guide (7 pages) AtlasIED Discover Quick Start Guide (7 pages)

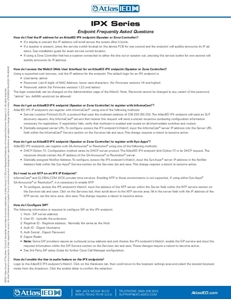

    IPX Endpoint FAQ (5 pages) IPX Endpoint FAQ (5 pages)

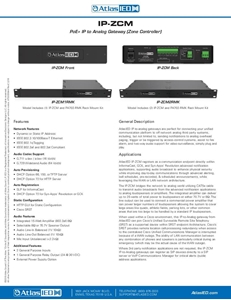

    IP-ZCM Data Sheet (5 pages) IP-ZCM Data Sheet (5 pages)

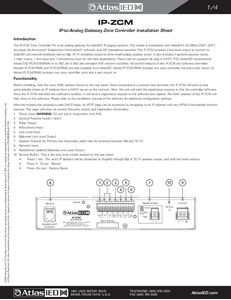

    IP-ZCM Install Sheet (4 pages) IP-ZCM Install Sheet (4 pages)

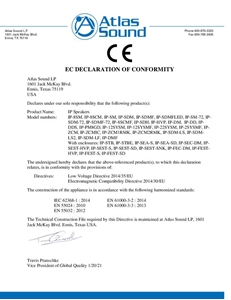

    IP Speakers EC Declaration of Conformity (1 page) IP Speakers EC Declaration of Conformity (1 page)

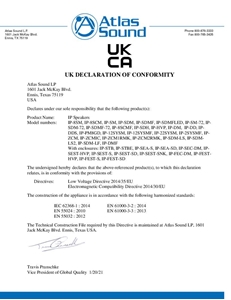

    IP Speakers UK Declaration of Conformity (1 page) IP Speakers UK Declaration of Conformity (1 page)
    IP_CB-Cert (2 pages) IP_CB-Cert (2 pages)

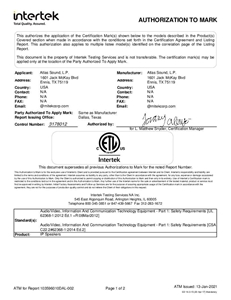

    Intertek Authorization to Mark (2 pages) Intertek Authorization to Mark (2 pages)
