Deluxe Corridor Baffle 8 inch

  • UL Listed

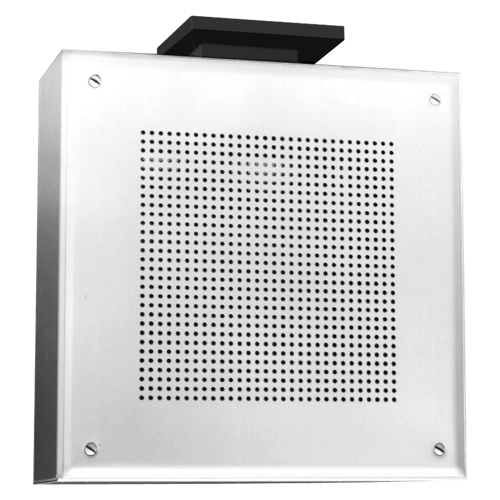

    The handsome design of this deluxe corridor baffle/enclosure includes a cast mounting canopy surface enclosure and two flush grilles. Model 612-8 accommodates one standard 8" (203mm) speaker and includes welded mounting studs for easy speaker installation plus a two-piece mounting canopy, and hardware for secure assembly to a standard 4" (102mm) octagon E.O. box. To prevent metallic resonance, the interior enclosure is coated with a metal deadener. Unit is manufactured of 20-gauge CRS and finished in textured white with a contrasting black mounting canopy.

    Model 612-8 enclosure utilizes a single speaker to provide economical, bi-directional sound reproduction. Front and rear mounted grilles provide maximum opportunity for natural bi-directional sound distribution created by the front and back movement of a speaker cone.

    • Attractive Design Includes a Cast Mounting Canopy, Enclosure, and Two Flush Grilles.
    • Economical One-Loudspeaker Bi-Directional Design Mounts a Standard 8" Loudspeaker.
    • Ideal for Corridor Applications Where Surface Mounting Space is Limited.

    Height 110 11/16" (29.591 cm)
    Width 11 5/8" (29.5275 cm)
    Depth 4 1/2" (11.43 cm)
    Shipping Weight 7.00 lbs (3.18 kgs)
    Safety Listed 1480

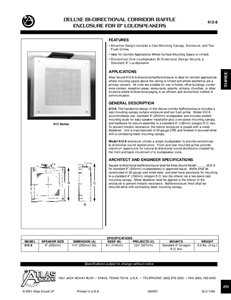

    Deluxe Bi-Directional Corridor Baffle Enclosure for 8 Deluxe Bi-Directional Corridor Baffle Enclosure for 8" Loudspeakers (1 page)
