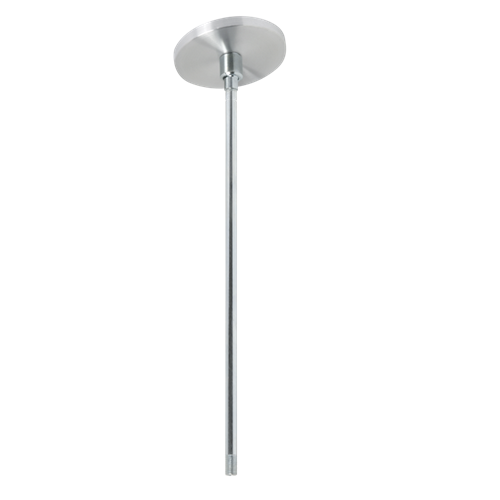

3 Ft Hanger for 8 inch Cylindrical Baffle

435-3
    DESCRIPTION
    435-3 is designed to support and suspend baffle Models X44, X8414 and X8409. Hangers are available in multiples of 1 foot and include brushed aluminum canopy, nickel-plat-ed hang straight swivel, zinc plated 1/2" (13mm) steel tubing and necessary hardware. Units mount directly to a 4" (102mm) octagon E.O. box (not included). The 435 Series features an angular canopy and is designed to mount on flat ceilings or those with a slope of 15° or less.

    Features
    • Brushed Aluminum Canopy, Nickel-Plated Hang Straight Swivel, Zinc Plated 1/2" (13mm) Steel Tubing and necessary hardware
    • Designed to Support and Suspend Baffle Models X44, X8414 and X8409
    • Mounts Directly to a 4" (102mm) Octagon E.O. Box

    SPECIFICATIONS
    Height 36" (91.44 cm)
    Shipping Weight 0.50 lbs (0.23 kgs)

    SUPPORT FILES
    435 SERIES 435 SERIES

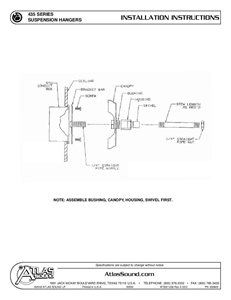

    435 Series Suspension Hanger Installation Instructions (1 page) 435 Series Suspension Hanger Installation Instructions (1 page)

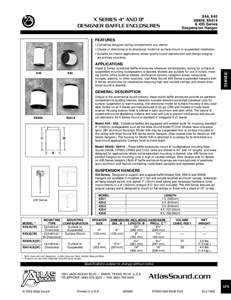

    X Series 4 X Series 4" and 8" Designer Baffle Enclosures Datasheet (1 page)
