Recessed Enclosure for 830-812A

Name: Recessed Enclosure for 830-812A
Brand: AtlasIED
SKU: 194-812
Rating: 5 (5 reviews)

194-812

Availability: In stock

Your Price:

$103.99

DESCRIPTION

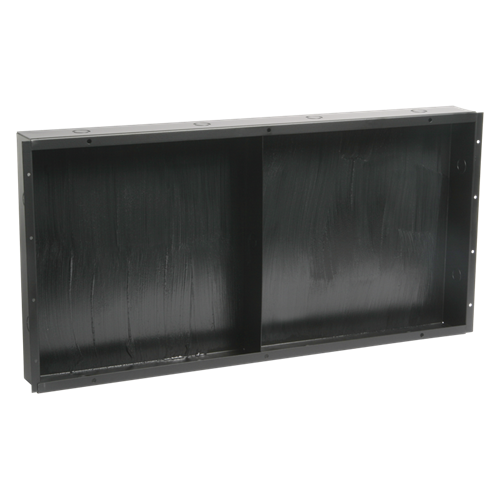

The AtlasIED 194-812 protective enclosure for recessed mounting of 830-812A clock/speaker baffles. This 194-812 model contains 12 triple-compound conduit knockouts (six on both top and bottom) to facilitate easy wiring. Constructed of 20-gauge CRS and is heavily undercoated to prevent mechanical resonances. Unit contains a compartment divider to separate high and low voltage wiring. Finished with an epoxy coating.

Features

Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
Include Provisions for Easy Installation of Standard 8" Loudspeakers
Recessed Mounting Style Meets Installation Requirements.
Reliable Design Installs Quickly in New or Retrofit Construction

SPECIFICATIONS

Height	15 7/8" (40.3225 cm)
Width	31 5/8" (80.3275 cm)
Depth	3" (7.62 cm)
Shipping Weight	11.00 lbs (4.99 kgs)
Mounts Baffle	830-812A
Warranty Period	60 months from date of purchase

SUPPORT FILES

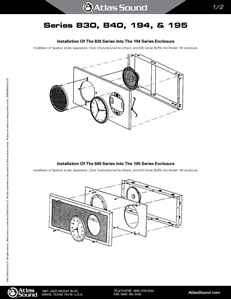

Series 830, 840, 194, and 195 Install Sheet (2 pages)

View | Download

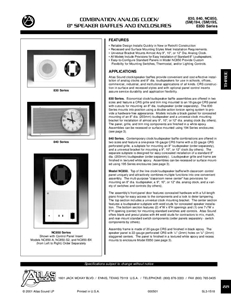

Combination Analog Clock / 8" Speaker Baffles and Enclosures (4 pages)

View | Download
