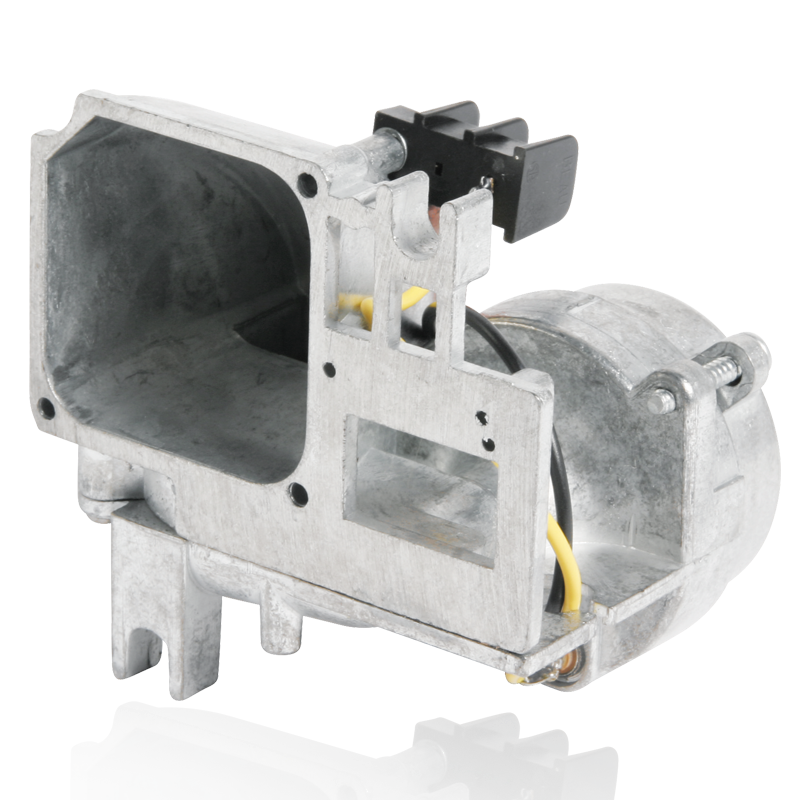

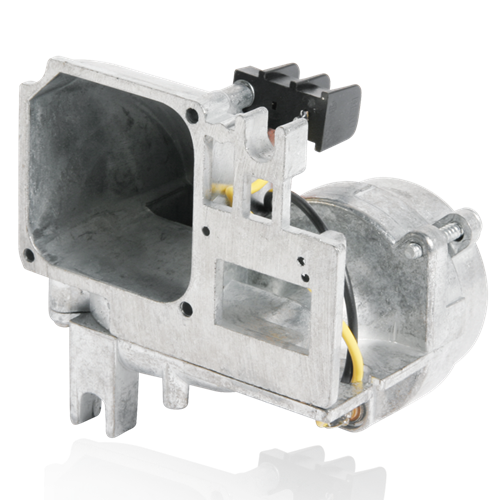

15-Watt, 8Ω Environment Resistant Voice/Tone Compression Driver

  • UL Listed
  • TAA
  • BAA
  • IP56

    AtlasIED VTB Series Models are environment-resistant loudspeakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals. Units have a frequency response of 600Hz - 55kHz, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.

    8 Ohms
    Communications, Intercom, Electronic Alarm, and Monitoring Systems
    High Efficiency Compression Driver for Optimum Audio Intelligibility
    Metal Die-Cast Construction with Integral Exponential Horn
    Operates Within a Temperature Range of -30° F to 150° F
    Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
    UL Certified, Safety Listed to UL1480
    Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
    UL-Recognized Speaker Component
    Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant
    Frequency Response 600Hz - 5.5kHz
    Sensitivity 96.9dB (1W/1m)
    Power Handling 15W (8 Ohms)
    Height 3 11/16" (9.36752 cm)
    Depth 3 3/16" (8.09752 cm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Data Sheet
    ATS004143 VTB Series Datasheet RevA (3 pages)
    CAD Drawing
