Intercom Stations w Speaker, Call & 25V Transformer

Availability: In stock
MSRP (USD): $169.99
  • BAA
  • TAA
  • IP44
  • Vandal Proof

    Atlas-Sound’s VPCS-2GPB-2 2-gang intercom stations (Patent applied for) provides superior intelligibility for one or two-way communication in high-security applications. Units are designed for installation in detention, correctional, and institutional facilities. VPCS intercom stations are also ideal for use in high-risk public-access spaces such as hallways, lobbies, and parking garages.

    Units withstand abuse, moisture, corrosion, dust, vibration, and temperature extremes from -10° to 150° F.
    Stations are equipped with a 2 1/2" (64mm) dia. speaker to deliver clear voice and signal transmission while the phenolic resin impregnated, moisture-proof cloth cone provides durable performance. Two die cast baffles protect the speaker from vandalism.

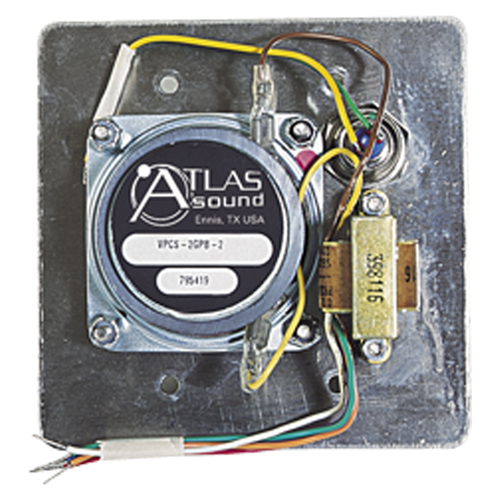

    The VPCS-2GPB-2 includes a 25V transformer and a vandal-proof push-button call switch for installation where call origination is a required function or a desired adjunct to security. The face plate mounts to a standard 2 gang E.O. box with any counter sunk 6-32" mounting screw. Lead wires are 5" (127mm). Switch is single pole, single throw, normally open. Pushbutton assembly is constructed of nickel plated brass and sealed against moisture with a classification of 1P65.

    • Call Switch Equipped Model
    • Choice of Basic or Call Switch Equipped Models

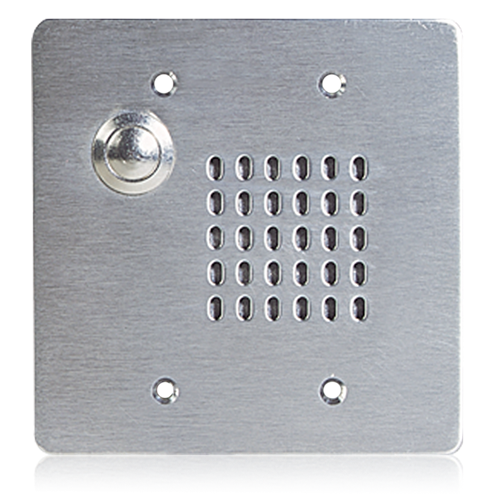

    • Durable 11-Gauge, Stainless Steel Face Plate
    • Transformer Models Include 2, 1, 1/2, and 1/4 Watt Taps at 25 Volts
    • Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
    • Unit Design Facilitates Quick and Easy Service Procedures

    Frequency Response 350Hz - 45kHz
    Sensitivity 88dB
    Power Taps .25W, .5W, 1W, 2W
    Transformer 25V
    Height 4 3/4" (12.07 cm)
    Depth 2 1/8" (5.398 cm)
    Shipping Weight 1.75 lbs (0.79 kgs)

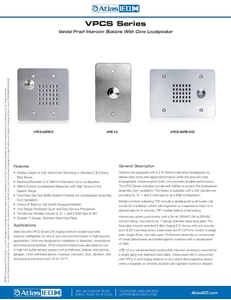

    VPCS Datasheet (2 pages) 316 KB
