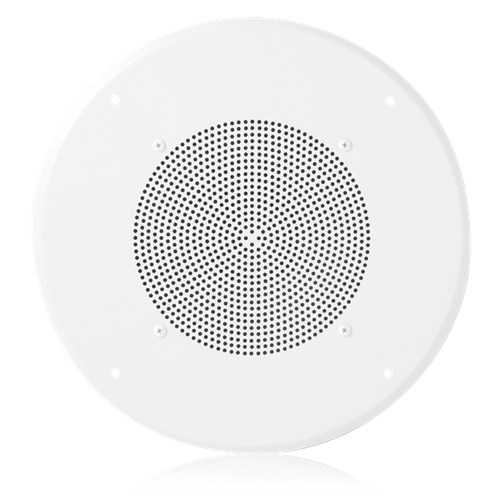

8" In-Ceiling Loudspeaker for Fire Signaling with 5-Watt 70V Transformer and U51-8 Baffle

  • UL Listed
  • CSFM Listed
  • 70V100VCAPABLE
  • TAA
  • BAA

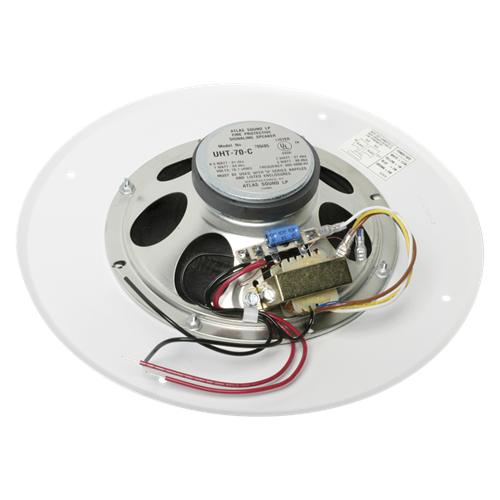

    AtlasIED's UHT70C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.
    To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures

    Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
    Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
    Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
    Selection of UL Approved, Companion Enclosures is Offered
    UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
    Frequency Response 85Hz - 8kHz
    Sensitivity 97dB Peak, 94dB Avg.
    Power Taps .5, 1, 2, & 5 Watts
    Power Rating 10 Watts
    Diameter 8" (20.32 cm)
    Depth 2 7/8" (7.3025 cm)
    Shipping Weight 4.67 lbs (2.12 kgs)
    Safety Listed 1480
    EASE File
    Data Sheet

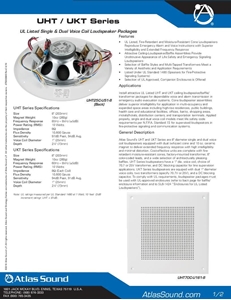

    UHT_UKT Data Sheet (2 pages)
