5 Watt Single Speaker Power Amplifier

SSAA5

    DESCRIPTION

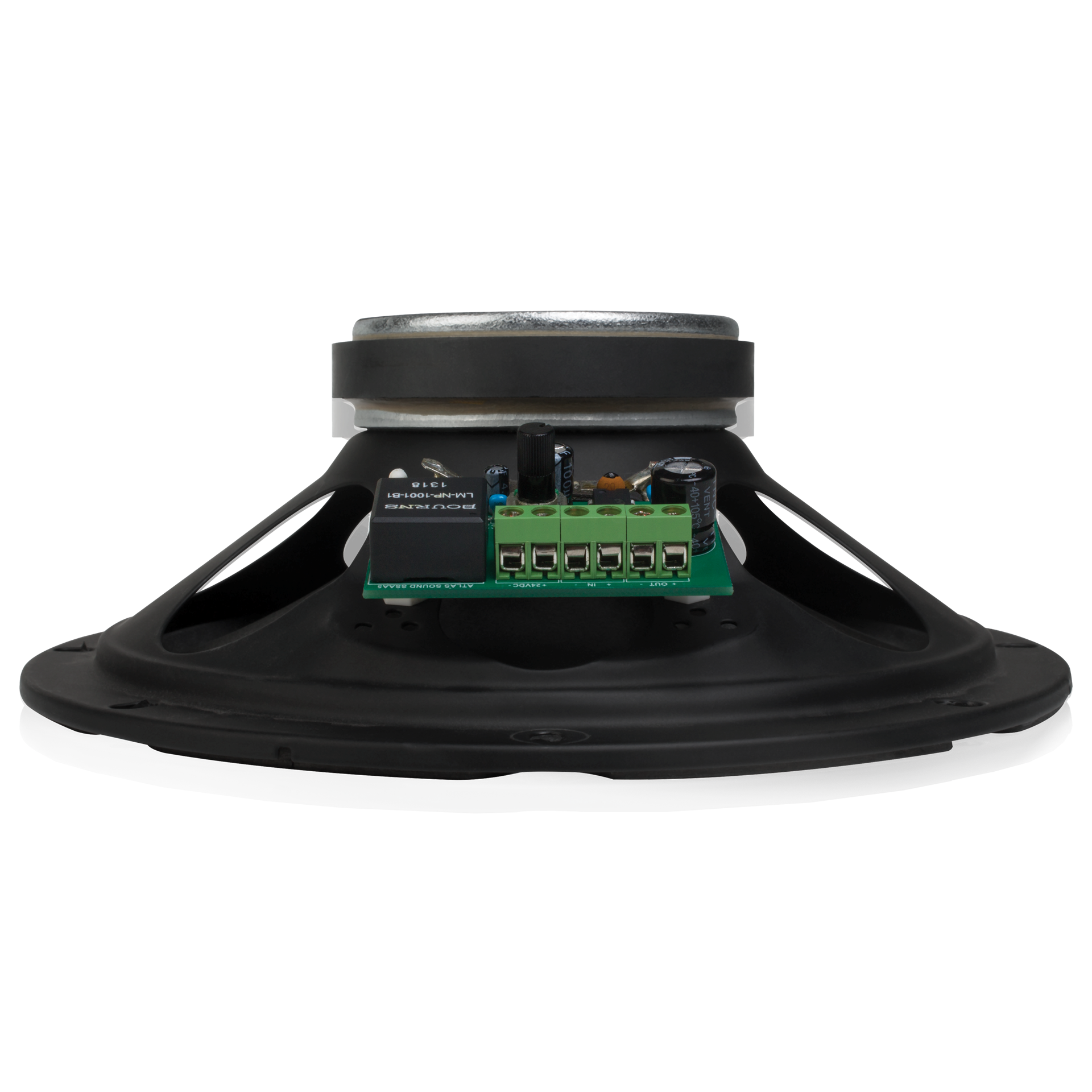

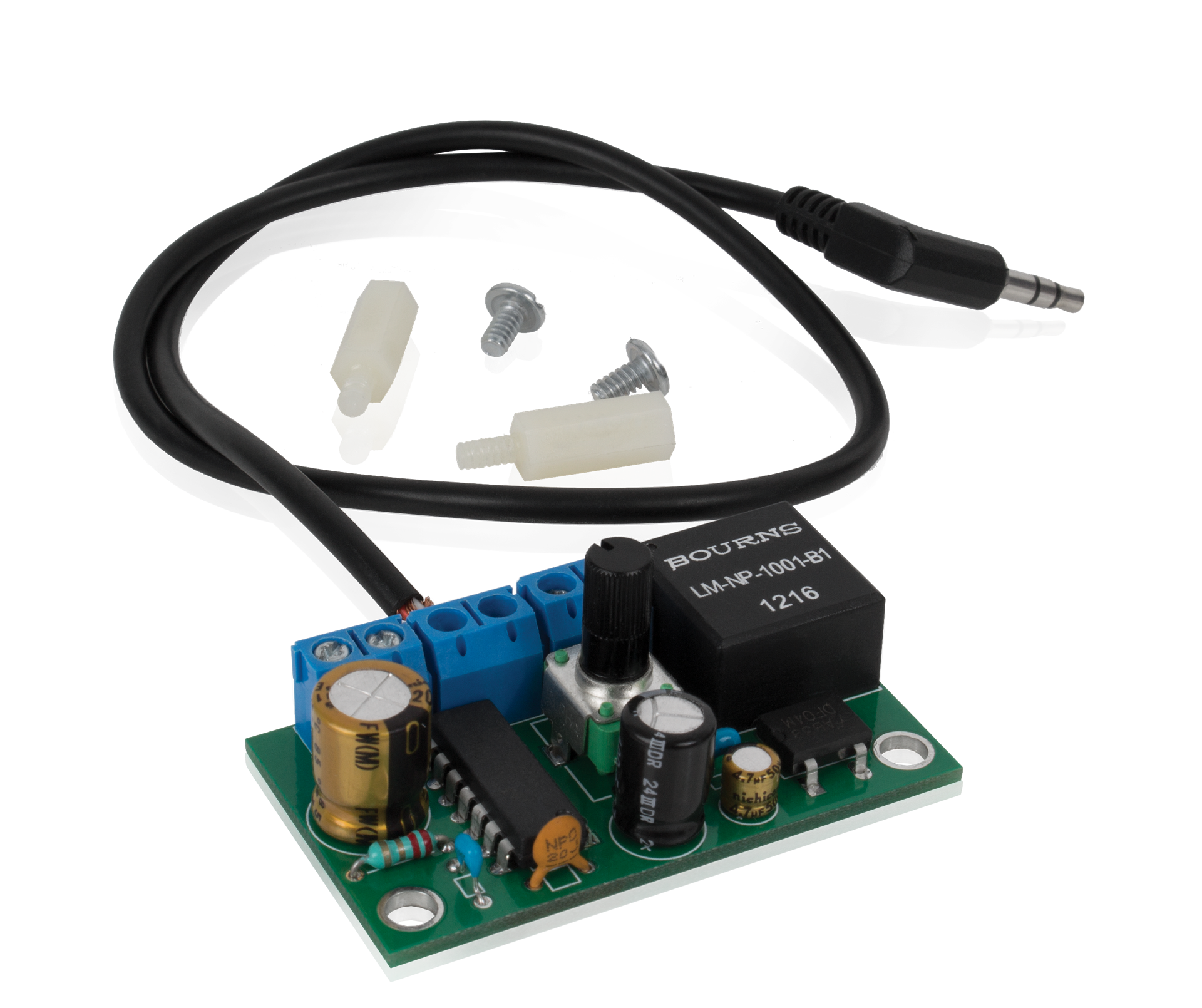

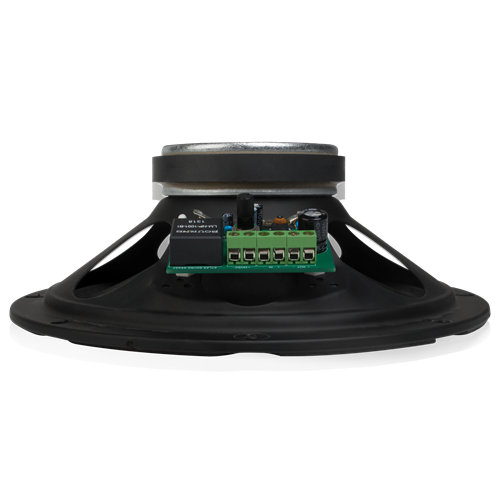

    The SSAA-5 is a small analog audio amplifier designed to power a single 8Ω speaker. This devise is a perfect solution for small paging and back ground music systems. It small form factor has been designed to use the existing 70.7V transformer mounting holes that is provided on many Atlas 8" ceiling speakers. The SSAA-5 utilizes a single balanced analog input, 24VDC Input, and a 4Ω speaker output. See recommended power below.

    Features
    • Small Form Factor
    • Balanced Input
    • Mounts to Atlas Sound 8" Ceiling Speakers
    • Output is Short Circuit Proof with Internal Thermal Limiting
    • Level Control
    • 24VDC Input
    • Terminal Screw Input
    • Power Supply Sold Separately
    SPECIFICATIONS
    Input impedance 150KΩ
    THD .25% @ 1kHz
    24VDC Power Requirements 1.3A Max
    Input Level 500mV (-6dB) Balanced
    Frequency Response 80Hz - 15kHz
    Height 1 3/8" (3.49cm)
    Width 2 3/8" (6.03cm)
    Depth 1" (2.54cm)
    Warranty Period 60 months from date of purchase
