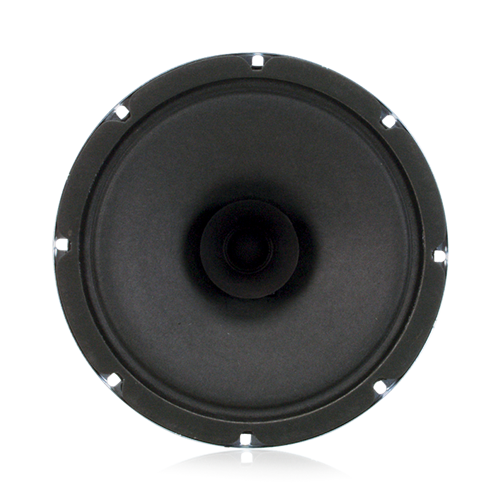

8" Dual Cone In-Ceiling Loudspeaker with 25V/70V 5-Watt Transformer

SD72
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CETL
  • 4OHM8OHMCAPABLE

    The loudspeaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series loudspeakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72.

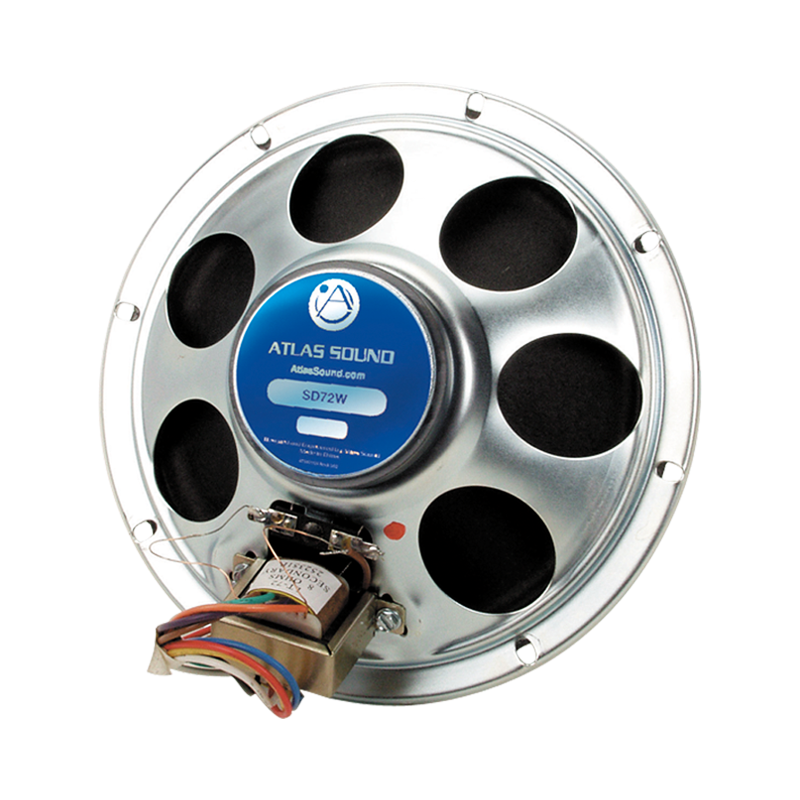

    Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

    Model SD72 operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

    The unit mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

    FEATURES
    5 Watt-Dual Voltage Transformer
    Individually Packaged for Stocking & Ordering Convenience
    Quality 10oz Dual Cone Speaker Provides Familiar Response & Performance

    ETL Certified, Safety Listed to UL1480.

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Average
    Frequency Response 55Hz - 8kHz
    Power Taps .25, .5, 1, 2, & 5 Watts
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Diameter 8 1/8" (20.6375 cm)
    Safety Listed 1480, 2043
    SUPPORT FILES
    EASE File
    SD72 EASE
    Data Sheet

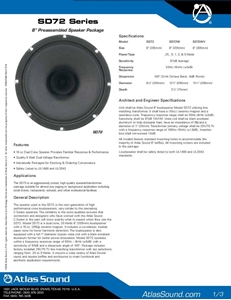

    SD72 Series Data Sheet (3 pages)
    CAD Drawing
    SD72
    Installation Sheet

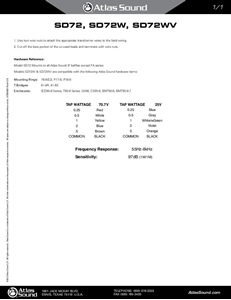

    ATS004381 SD72, SD72W, SD72WV Install Sheet (1 page)
