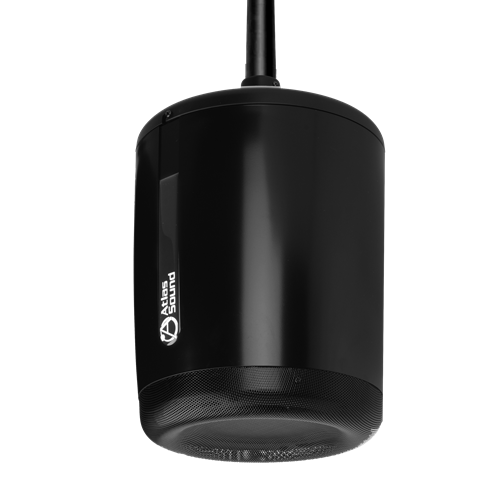

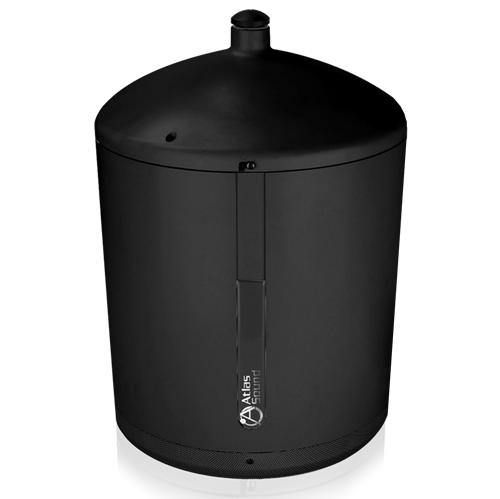

8" 2-way High Efficiency Pendent Speaker with 8-Watt 70V Transformer - Black

PM8GD-B
Availability: In stock
MSRP (USD): $313.99
  • IPX3
  • 70V / 100V Operation
  • 8Ω Operation
    DESCRIPTION
    Model PM8GD-B uses the popular AtlasIED GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.

    FEATURES
    • 70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block
    • 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations

    SPECIFICATIONS
    Speaker Type Coaxial (Treated Paper)
    Sensitivity 96dB Average
    Frequency Response 55Hz - 15kHz
    Impedance 1, 2, 4, 8 Watts and 8Ω
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Diameter 12 1/4" (31.115 cm)

    SUPPORT FILES
    PM Series Install Sheet (7 pages) 921 KB

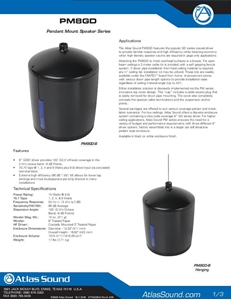

    PM8GD Datasheet (3 pages) 819 KB
    PM8 Series CAD File 293 KB
    PM8GD 262 KB
    PM8GD EASE DATA 43 KB
    PM8GD-B Revit Drawing 364 KB
    PM8 Series Revit Family 271 KB
    PM8FA CLF DATA 327 KB
