The IPCSDTOUCH digital communications station is a fully programmable touch screen user interface device for initiating audio/visual announcements with GLOBALCOM Announcement Control Systems. Each model utilizes an electret condenser cartridge that is positioned in the housing such that its frequency response is enhanced. The microphone element location provides the mechanism for good acoustical coupling to provide a full-bodied, highly intelligible voice signal. The IPSCDTOUCH-G includes a gooseneck microphone.
The IPCSDTOUCH has an auxiliary line level audio input which may be used as a (local) background music source. The station also has a line level audio output which may be used as a zone out.
The IPCSDTOUCH is a network appliance in which each station may obtain its IP address automatically or be assigned a unique IP address which simplifies installation and configuration.
- Dante™ Enabled
- Fully Programmable Touch Screen User Interface
- Provides unlimited selection and initiation of announcements and messages in a GLOBALCOM®.IP System
- Supervision of the Microphone Element
- Handheld, Gooseneck, Surface (Flat) or Desktop (Free Standing) Versions
- Redundant Ethernet Ports
- PoE Powered
Front Panel Features
- Fully Programmable touch screen User Interface.
- Alarm Indicator LED (red)
- Fault Indicator LED (yellow)
- Busy Indicator LED (yellow)
- Ready Indicator LED (green)
The handheld microphone assembly contains an omnidirectional electret condenser microphone cartridge integrated with a microphone preamplifier and an audio line driver. The microphone element and preamplifier are mounted in a teardrop shaped molded black textured Cyclolac™ housing. The use of an omnidirectional element eliminates the proximity effect which creates a boomy sound when a user speaks close to a microphone.
It utilizes a magnet for attachment to the microphone station base assembly and is supplied with a circular coiled cable which is built into the housing assembly. A strain relief is built into the housing end of the cable and locks into the housing. The terminations at each end are molded, 6 wire, RJ25 connectors which provide extra strength and resistance to failure by pull-out.
The cartridge features include a highly efficient electrical specification, pressure type operating principle, low impedance (2.2 kΩ), and high reliability under adverse shock, vibration and other environmental conditions.

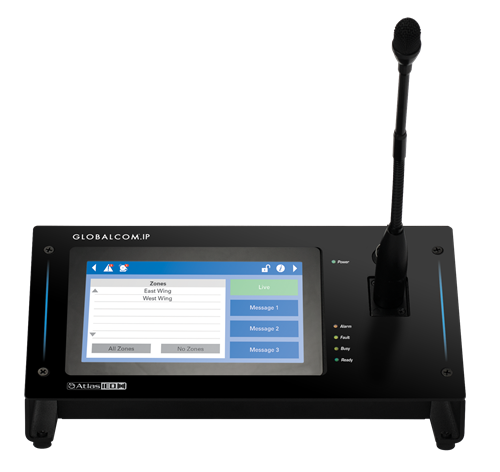

The gooseneck microphone contains an omnidirectional electret condenser microphone cartridge integrated with a microphone preamplifier and an audio line driver. The microphone element is mounted in the metal windscreen portion of the gooseneck. The preamplifier and line driver are on a PC board mounted inside the base of the gooseneck on an XLR connector. The microphone assembly is a 12” gooseneck with a hard metal windscreen at the top and a 5-pin XLR connector in the base for mounting.
