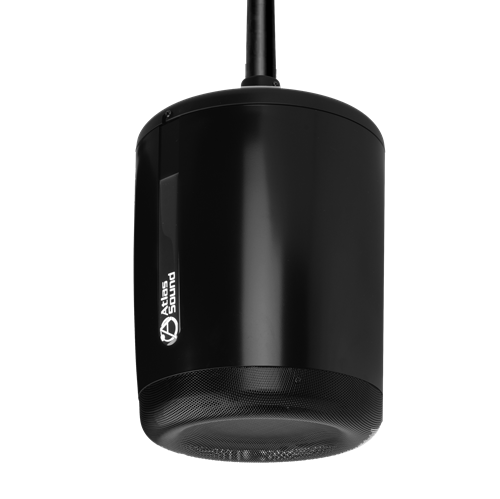

8” Pendent Mount PoE+ IP Speaker System - Black

IP-PM8GD-B
  • Software License Required
  • BAA
  • CETL
  • CE
  • Network Ready
  • PoE+
  • UKCA
  • PoE+ Enabled
  • FCC
  • IPX3
  • GCK optimized
  • G.711 Capable
  • G.722 Capable
  • One Cable Installation
    DESCRIPTION

    The AtlasIED IPX Series surface mount IP speaker system, model IP-PM8GD-B, leverages the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired.

    AtlasIED IP-PM8GD-B registers as a communication endpoint directly within InformaCast, Revolution, and GCK Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the IP-PM8GD-B speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    FEATURES
    • Network Features

    • 8" Coaxial, High-Efficiency Coaxial Speaker

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Audio Features

    • Static Registration: HTTP GUI for Static Configuration
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware

    SPECIFICATIONS
    Connector Type RJ-45
    Speaker Type Coaxial (Treated Paper)
    Speaker Output 9-Watts (802.3AF), 15-Watts (802.3AT)
    Amplifier Power 15-Watts Max (802.3AT)
    Sensitivity 106dB Continuous
    Frequency Response 86Hz - 15.5kHz
    THD <.02%
    Dispersion 105° (800Hz - 4kHz)
    Safety Listed Safety Listed to UL 62368
    Height 16.62" (422mm)
    Width 12.25" (311mm)
    Weight 12.5 lbs (5.67kg)
    Shipping Weight 15.5 lbs (7.03kg)

    SUPPORT FILES

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!

    Discover Application and Firmware
    Discover App v1.1.9.2 Firmware v1.6.0
    Firmware Release Notes
    IPX Firmware Release Notes 1.6.0 (1 page)
    Declaration of Conformity
    IP Speakers UK Declaration of Conformity (1 page)
    Declaration of Conformity
    IP Speakers EC Declaration of Conformity (1 page)
    Installation Sheet

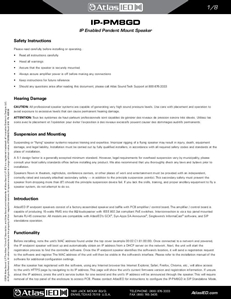

    ATS005842_IP-PM8GD_Install Sheet (8 pages)
    Installation Sheet
    IPX Series Install Sheet (4 pages)
    Data Sheet

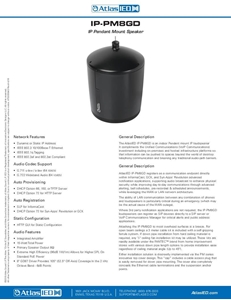

    IP-PM8GD-B Data Sheet (6 pages)
    FAQ Sheet
    IPX Endpoint FAQ (5 pages)
    CAD Drawing
    PM8GD
    CAD Drawing
    PM8 Series CAD File
    EASE File
    PM8GD EASE DATA
    Revit Drawing
    PM8 Series Revit Family
    Revit Drawing
    PM8GD-B Revit Drawing
    Quick Start Guide
    AtlasIED Discover Quick Start Guide (7 pages)
    Quick Start Guide
    IPX Endpoint Quick Start Guide (1 page)
    Common Loud Speaker Format
    PM8FA CLF DATA
    Certificate Of Quality Compliance
    IP_CB-Cert (2 pages)
    Certificate Of Quality Compliance
    Intertek Authorization to Mark (2 pages)
    Firmware
    IPX System Release 1.6.0
    Firmware Update Guide
    IPX Endpoint Firmware Update Guide (1 page)
    Product Overview
    IPX Product Overview (3 pages)
