PoE+ Vandal and Weather Resistant Wall Mount IP Speaker

IP-HVP
  • PoE+
  • Software License Required
  • Enclosure Sold Separately
  • IP45
  • G.722 Capable
  • GCK Optimized
  • Network Ready
  • One Cable Installation
  • G.711 Capable
  • InformaCast Compatible
  • SA-Announce Compatible
  • Vandal Proof
    DESCRIPTION

    AtlasIED IP-HVP is a vandal proof, weather resistant, wall mount IP speaker. It leverages VoIP communication to extend tele-presence with enhanced audio for environments where network-wide communication is desired and high-output speakers are required to overcome high ambient noise and/or large spaces. The speaker grills are vandal and weather resistant. Manufactured of cast aluminum alloy, the grills provide security and durability in indoor and outdoor applications.

    AtlasIED IP-HVP registers as a communication endpoint directly within InformaCast, GCK, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/ LAN Network Architecture.

    When used within a Cisco Environment, the IP-HVP speakers can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the IP-HVP vandal proof, weather resistant, wall mount IP can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts and public address applications.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    IP-HVP Indoor / Outdoor models are fitted with a highly efficient 15-Watt compression driver/speaker with a proven record of outstanding service reliability. A double re-entrant design provides superior sound level output and clear audibility of voice and tone alert notification and paging.

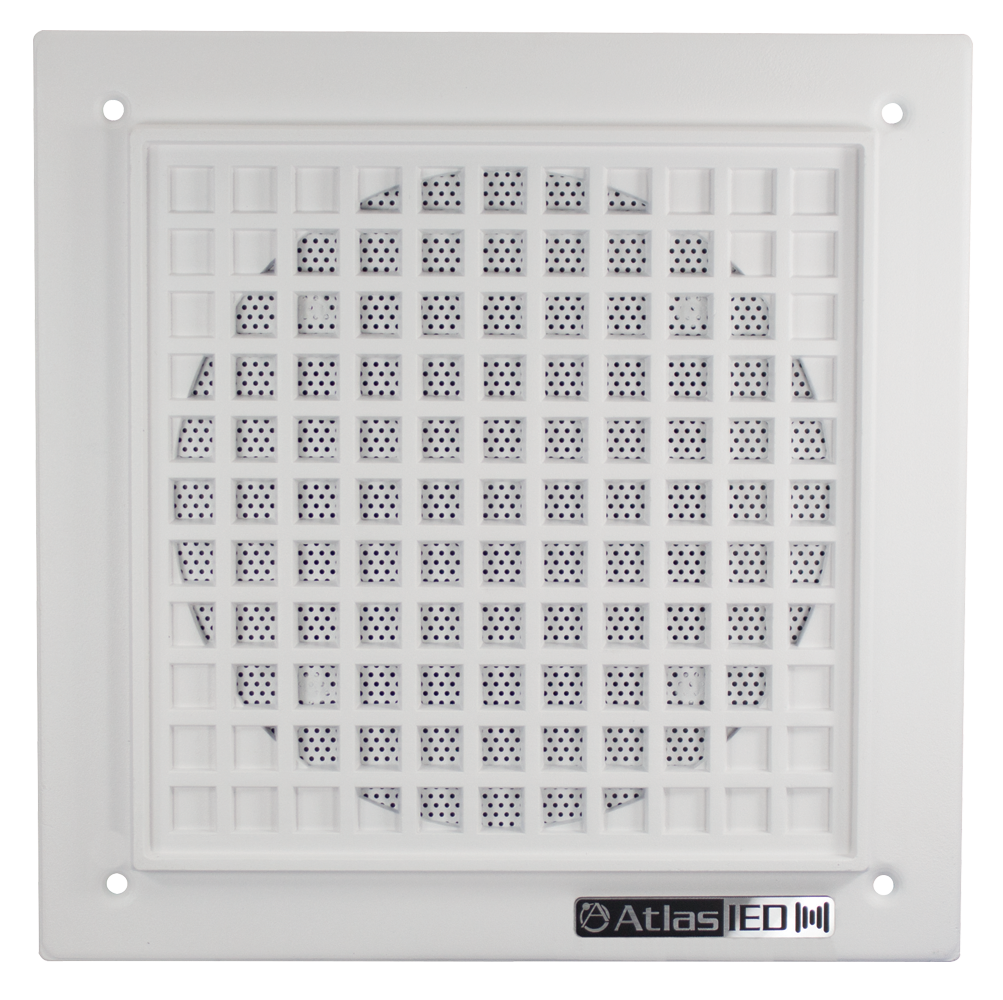

    The speaker grills are vandal and weather resistant. Manufactured of cast aluminum alloy, they provide security and durability in indoor and outdoor applications.

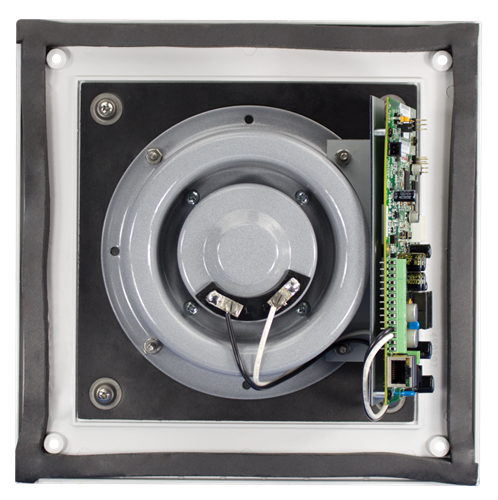

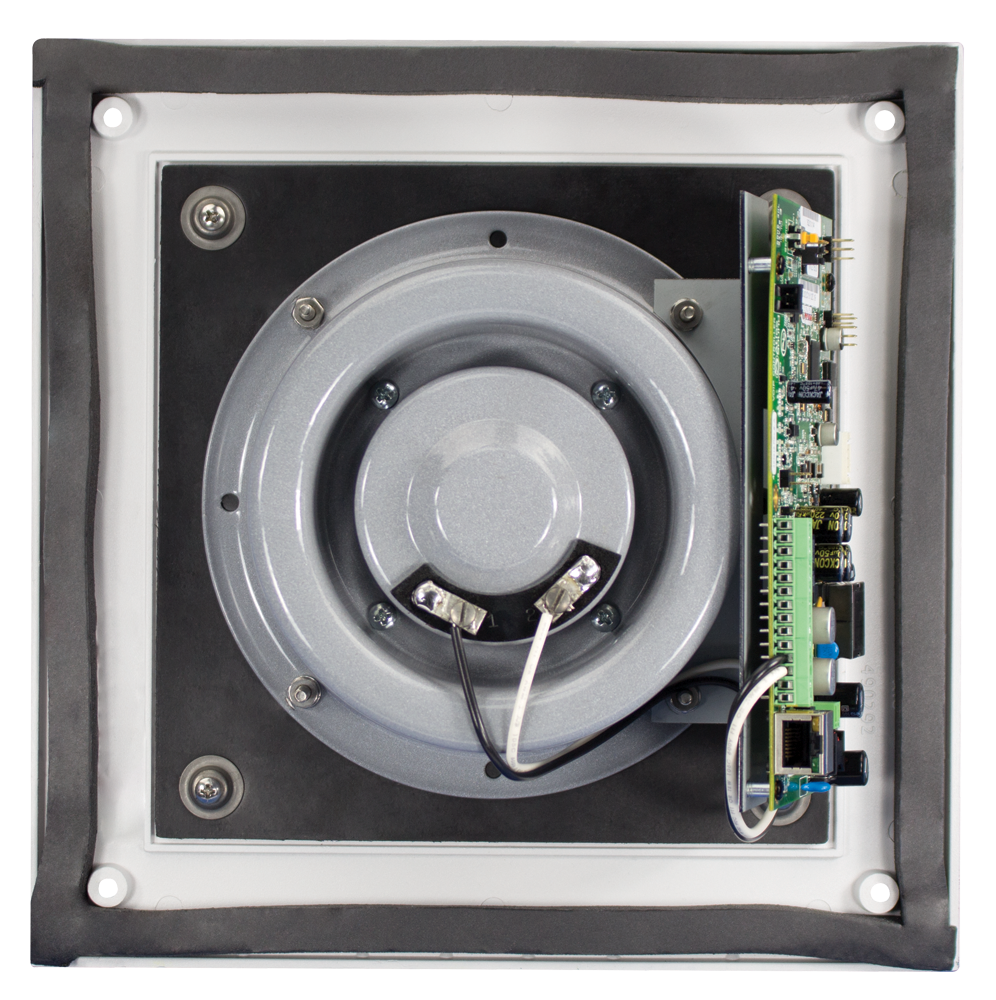

    All AtlasIED IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The IP-HVP features include auto-provisioning and auto-registration. This is an easy and time-saving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Vandal Proof Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): IP-FEST-HVP
    • Wall – Surface (On-Wall): IP-SEST-HVP

    FEATURES
    • Network Features
    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
    • Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
    • Audio Features
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • PoE+ and PoE Enabled

    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Connector Type RJ-45
    Height 10-3/4" (27.305 cm)
    Depth 4-7/8" (12.319 cm)
    Shipping Weight 5.50 lbs (2.49 kgs)

    SUPPORT FILES
    CAD Drawing
    IHVP+ CAD File

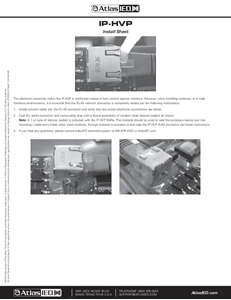

    Installation Sheet
    IPX Series Endpoint Speaker Install Sheet
    Revit Drawing
    IHVP+ Revit Drawing
