PoE+ Indoor Wall Mount IP Endpoint Speaker with LED Display, Paging Microphone, and LED Flashers

IP-8SCMF
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $1,303.99
  • PoE+
  • Software License Required
  • Enclosure Sold Separately
  • ETL
  • G.722 Capable
  • GCK Optimized
  • Network Ready
  • One Cable Installation
  • G.711 Capable
  • InformaCast Compatible
  • SA-Announce Compatible
  • LED Display Included
  • Flasher Included
    DESCRIPTION

    AtlasIED IP-8SCMF indoor wall mount IP speaker with display, talkback, and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED IP-8SCMF registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    IP-8SCMF IP speakers with display, talkback, and flasher provide equality “effective communication”.

    “Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

    What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

    Where 3rd party notification applications are not required, the IP-8SCMF speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    IP-8SCMF indoor speakers are fitted with a dual cone 8" (205mm) speaker that is optimized for voice intelligibility.

    The grills for the IP-8SCMF+ IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IP-8SCMF displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SCMF+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

    The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.

    IP-8SCMF includes an omni directional subminiature, electret condenser microphone that is mounted behind the grill’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

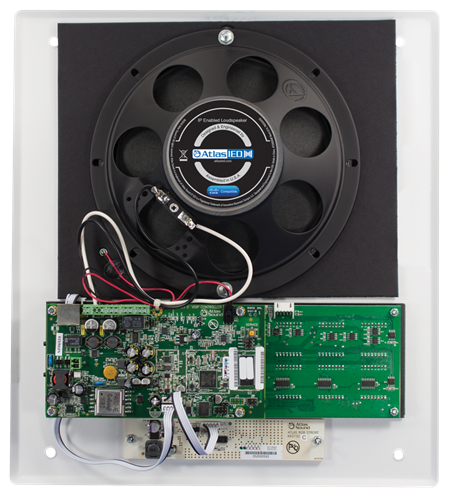

    All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The IP-8SCMF features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): IP-FEST-SD
    • Wall – Surface (On-Wall): IP-SEST-SD
    • Wall – Slanted (On-Wall): IP-SEA-SD

    FEATURES
    • Network Features
    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
    • Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
    • Audio Features
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Connector Type RJ-45
    Height 14-3/8" (36.5252 cm)
    Width 12-7/8" (32.7152 cm)
    Depth 3" (7.5946 cm)
    Shipping Weight 5.50 lbs (2.49 kgs)
    Safety Listed 60950-1
