Ambient Analysis Sensor Collector

  • Ambient Noise

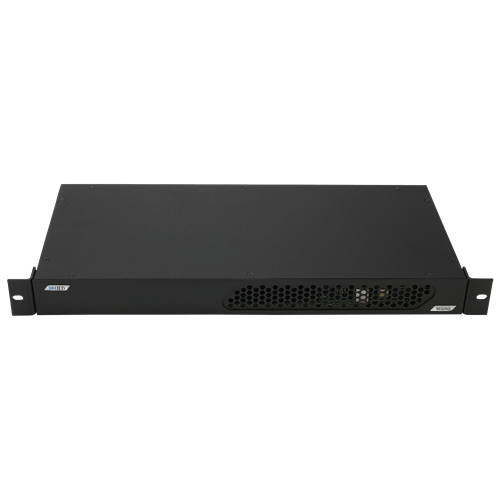

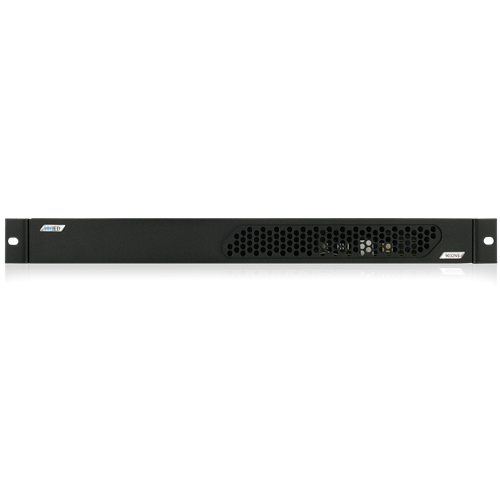

    The Model T9032NS Ambient Analysis Sensor Collector is a unit especially designed to interface with up to 32 IED 540S Ambient Sensors. This device is designed to mount in a 19 inch equipment rack/cabinet, taking up only 1 rack unit (RU) of space or 1.75” of vertical space. All cooling is back to front, so no additional vertical space is required in the rack for cooling. The main frame has removable rack mounting ears, which may alternately be placed near the bottom of the main frame for ease in mounting the unit on a wall, such as in a telephone closet or on the back for rear rail mounting reinforcement.

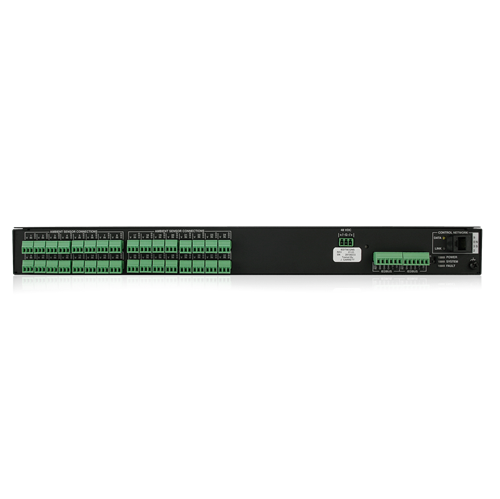

    The collector has connections for up to up to 32 IED 540S Ambient Sensors, and it supplies the 27 Volts of DC power required by the sensors. The collector samples the readings from all sensors several times per second and sends the readings to an IED T9160 Titan Series mainframe to perform the Ambient Analysis calculations. The T9032NS collector links to the T9160 main frame via Ethernet or (future) CAN bus connection.

    The collector is powered in a number of ways such as Power over Ethernet (PoE) from an IEEE 802.3af compatible Ethernet switch, a 48 VDC local power supply, or (future) power supplied over the CAN bus from an other Titan frame.

    • Interface with up to 32 IED 540S Ambient Sensors
    • Supplies 27VDC power to connected sensors
    • Connects to Titan mainframe via Ethernet connection

    Power Requirement 48VDC Supply Voltage
    Operating Temperature Range (+32°F to +122°F) 0°C to +50°C
    Power Requirement 10-Watts Power with 32 Sensors Connected
    Storage Temperature Range (-40°F to +158°F) -40°C to +70°C
    Width 19" (482.6mm) with rack ears
    Height 1.75" (44.5mm)
    Depth 17" (432mm)
    Weight 7 lbs. (3.2kg)
