Titan Analog 100-Volt, Two-Channel 200-Watt Amplifier Card

IEDT6412

  • Caution Titan Mainframe required
  • Made in USA
  • Fault Reporting
    DESCRIPTION

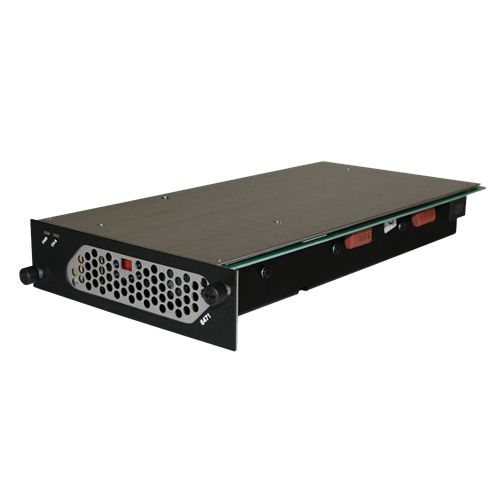

    The T6412 amplifier card is a 100-volt output, Class D (switching mode) dual channel amplifier that can be used in the Titan series power amplifier mainframes or in the IED T6400 analog 2-Card Power Amplifier Mainframe. Any card may be placed in any slot in the mainframes without requiring any configuration settings to be made on the amplifier cards.

    Class D operation combined with an integral switching mode power supply offers many advantages, and the unique IED design makes full use of these benefits. They include:

    • Higher Efficiency
    • Increased Reliability
    • Improved Performance
    • Lower Operating Cost

    Switching mode operation combined with high voltage power MOSFET devices make it possible to eliminate the heavy, costly, bulky transformers.
    The card contains no onboard attenuation controls. Attenuation is handled ahead of the power amplifier by electronics or controls on the amplifier mainframes. The power amplifier has built-in voltage limiting to protect the speakers. In addition, a temperature sensor on the heatsink will automatically shut down an amplifier that becomes too hot to protect the electronics. When used with the IED T9160 mainframe, the amplifier status signals are monitored by the T9160 CPU. Any failures are detected and reported to the IED supervision system to alert the user that service is required. When used in the IED T6400 mainframe, these status signals are presented at the back of the mainframe for monitoring by external devices such as the T9032MT or T9032LVIO collectors.

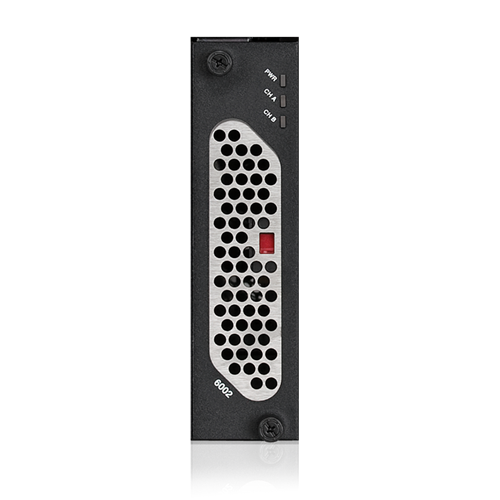

    The amplifier card has LED indicators located on its front edge. A single green LED will illuminate to indicate that the amplifier is powered on. Each channel on the card also has a multi-color signal LED. It will illuminate green when input signal is present on the channel. This LED changes to
    yellow to indicate that the channel is clipping. A power switch is provided on the front of each card. It is recessed and requires a tool to operate in order to prevent any accidental switch operation. The switch allows an individual card to be powered down and removed or replaced without affecting any other cards installed in the same mainframe. Each card provides +24VDC through current limiting resistors to operate of the fans in the rear of
    the mainframe.


    SPECIFICATIONS
    Power Output 200-Watts x 2-Channels at 100V
    Signal to Noise Ratio >85dB
    Operating Temperature Range +32°F - +122°F (0°C - +50°C)
    Input Power 505-Watts @ Full Power
    Input Power 270-Watts @ Half Power
    Input Power 156-Watts @ 1/4 Power
    Input Power 100-Watts @ 1/8 Power
    Input Power 39-Watts @ Quiescent Power
    Frequency Response 20Hz - 20kHz, 25% Rated Power
    Total Harmonic Distortion <0.2% @ 2kHz
    Input impedance 20kΩ, Balanced
    Output impedance 0.38Ω
    Storage Temperature Range -40°F - +158°F (-40°C - +70°C)
    Height 6.8" (173mm)
    Width 1.8" (46mm)
    Depth 12.5" (317.5mm)
    Weight 4.0 lbs. (1.8kg)
