PoE+ Indoor Wall Mount IP Speaker with LED Display and LED Flashers

I8SCF+
  • Software License Required
  • Enclosure Sold Separately
  • ETL
  • G.722 Capable
  • GCK Optimized
  • Network Ready
  • PoE Enabled
  • One Cable Installation
  • G.711 Capable
  • InformaCast Compatible
  • SA-Announce Compatible
  • Powered
  • LED Display Included
  • Flasher Included
    DESCRIPTION

    AtlasIED I8SCF+ indoor wall mount IP speaker with display and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED I8SCF+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    I8SCF+ IP speakers with display and flasher provide equality “effective communication”.

    “Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

    What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

    Where 3rd party notification applications are not required, the I8SC+ speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    I8SCF+ indoor speakers are fitted with a dual cone 8" (205mm) speaker that is optimized for voice intelligibility.

    The grills for the I8SCF+ IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

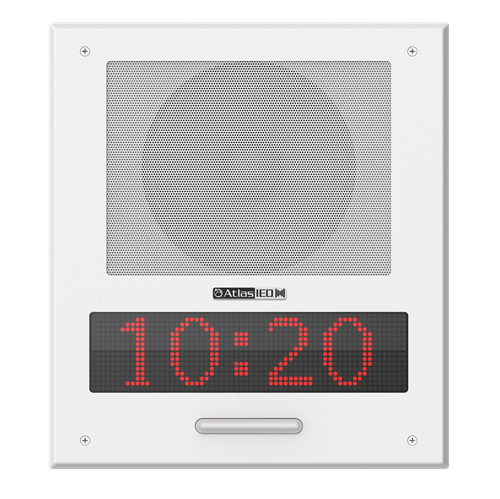

    While in Standby, the I8SCF+ displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SCF+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

    The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.

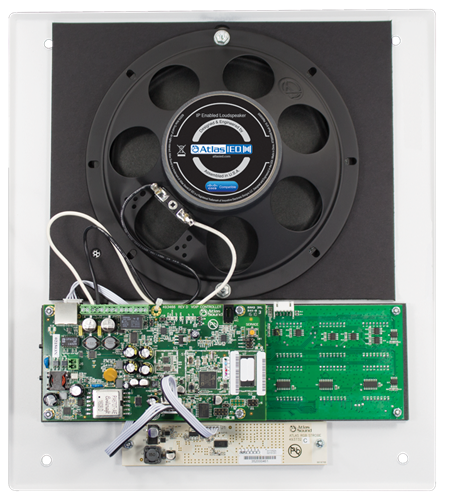

    All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The I8SCF+ features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): FEST-I8SC
    • Wall – Surface (On-Wall): SEST-I8SC
    • Wall – Slanted (On-Wall): SEA-I8SC

    FEATURES
    • Network Features
    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
    • Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
    • Audio Features
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Connector Type RJ-45
    Height 14-3/8" (36.5252 cm)
    Depth 3" (7.5946 cm)
    Safety Listed 60950-1

    SUPPORT FILES
    Installation Sheet
    IP+ Loudspeaker Installation Sheet

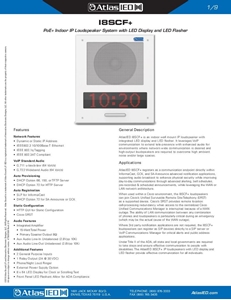

    Data Sheet
    CAD Drawing
    I8SCF+/I8SCMF+ CAD Drawing
    Software/Firmware
    Details of changes by firmware version
    Revit Drawing
    I8SCF+ Revit Drawing
    Software/Firmware
    Firmware version 12.21.03
    Software/Firmware
    Firmware version12.25.0b04
    Software/Firmware
    Description of changes by firmware version

    Frequently Asked Questions

    How do I reset this IP Speaker to factory configuration?

    First, disconnect the power source. Wait ten seconds before holding the service button found on the PCB near the mic input. While holding the service button down, connect the power source. After 15 seconds, release the service button. It may take a couple of minutes for the speaker to default its configuration and become available on the network.

    I connected my speaker. How do I find it?

    By default, the speaker will attempt to discover a DHCP server for addressing. After 60 seconds of searching, it will fall back to the last known IP address or 10.10.10.10 if none exists. You can discover the IP address using your DHCP server or by holding the holding the service button found on the PCB board near the mic input for one second. If a speaker is attached, an audio prompt should begin that announces the IP address.

    How do I adjust the volume of an IP Speaker?

    This depends on the audio source. GCK, SA-Announce, Informacast each provide volume controls for the speakers within their own interface. SIP, Multicast and locally stored audio volumes can be controlled within the web user interface under the device tab.

    How do I get the IP Speaker to be discovered by Informacast?

    Informacast (IC) uses a multicast discovery protocol, Service Location Protocol (SLP), for the IP Speakers which is a different discovery mechanism than the phones. The speaker will send a discovery request and IC should respond with configuration information. Within IC, verify that SLP is enabled at Admin | Network Parameter | SLP Parameters. Multicast can be blocked at any switch and must be specifically routed across network boundaries. If you suspect there is a multicast issue, you can use the "URL of Configuration File Server" value found at Admin |Network Paramaters | SLP Parameters and manually set the Informacast Address in the Speaker UI on the Device tab. Please note, it is required to add a / at the end of the value from Informacast (Ex. http://172.21.250.1:8081/InformaCast/resources/). This will bypass IC's native discovery, however all broadcasts from IC are also multicast and may need to be similarly configured on your network switches.
