Eight-Channel, 2400-Watt Commercial Amplifier

Availability: In stock
Your Price:
  • 70V / 100V Operation
  • Dante Network Option
  • Universal Power Supply

    The AtlasIED high power amplifier, “HPA” Series, is designed for use in either commercial 25V / 70V / 100V distributed systems or low impedance 8 or 4 ohm applications that require amplifiers to handle multiple impedance loads. The HPA2408 is compact and lightweight in comparison to other models delivering similar performance. The HPA2408 features Generation II Class D Output topology that provides high efficiency amplification with the sound quality of a Class AB amplifier. The power supply is designed for global use featuring a wide range voltage power supply with power factor correction and remains stable during fluctuating power conditions. The combination
    of the PFC power supply and the highly efficient output stage collectively deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load while not requiring a tremendous amount of AC power.

    The HPA Series features front panel stepped level controls with a security cover, remote turn on, balanced line inputs with sensitivity settings, fault reporting and an accessory card slots for an optional Dante™ eight-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star 1W standby mode standards.

    Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power / cost effective reliable amplification requirements.

    • 4Ω, 8Ω, 25V, 70V, & 100V Operation
    • Each channel load can be independent of the others
    • Only requires a 15A AC mains source for 120V operation
    • Remote turn on
    • Accessory card slots for optional Dante™ digital network audio cards
    • Fault Reporting
    • Detented attenuators with security covers
    • Stereo or parallel operating modes
    • Selectable input sensitivity
    • BUSS input with individual channel assignments
    • Multistage fan cooling
    • Removable air filters
    • Wide range AC Mains power supply 100V - 240V with PFC
    • Meets Energy Star standards for 1W Standby Mode

    Power Output 2400W
    100V 8 x 300W
    70.7V 8 x 300W
    25V 8 x 300W
    8 x 300W
    8 x 300W
    Frequency Response 20Hz - 20kHz (+0/-1.5dB)
    THD <0.15%
    Channels Eight
    Signal to Noise Ratio >70dB
    Connector Type Terminal Block & Phoenix
    Number of Fans 1 - Variable Speed
    Rack Units 2 RU
    Height 3.5" (89mm)
    Width 19" (483mm)
    Depth 15" (381mm)
    Voltage Compatibility Universal
    Weight 21.4 lbs. (9.7kg)
    Finish Black
    Warranty Period 36 months from date of purchase

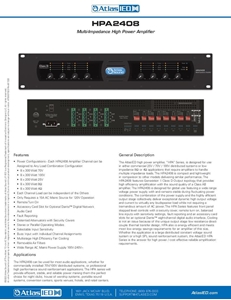

    HPA2408 Data Sheet (6 pages) HPA2408 Data Sheet (6 pages)

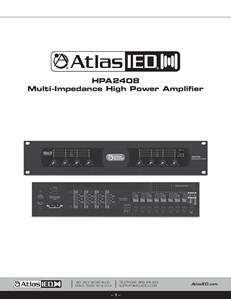

    HPA2408 Owners Manual (20 pages) HPA2408 Owners Manual (20 pages)
    HPA2408 CAD HPA2408 CAD
