Four-Channel, 1200-Watt Commercial Amplifier

HPA1204
Availability: Call Us for Product Availability
Your price (USD): $1,470.99
  • 70V / 100V Operation
  • 8Ω Operation
  • Dante Network Option
  • Universal Power Supply
    DESCRIPTION

    The AtlasIED High Power Amplifier “HPA” Series is designed for use in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle multiple impedance loads. The HPA is compact and lightweight in comparison to other models delivering similar power levels. The HPA Series features Generation II Class D Output topology that provides great efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode, global auto sensing design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any speaker load.

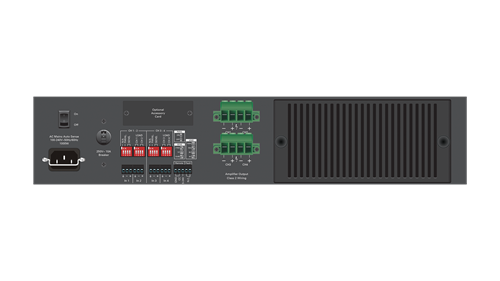

    The HPA Series features front panel detente level controls with a security cover, remote turn on, balanced inputs, fault reporting and a
    rear panel accessory card slot for an optional Dante™ 4-channel digital audio interface. HPA Series amplifiers feature a unique output
    stage, low resistance direct coupled thermal transfer design that effectively maintains optimal temperature across all loads and output
    levels. HPA Series amplifiers are also energy efficient and meet Energy Star standards, drawing only 1W of power in standby mode.

    Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED
    HPA Series is the answer for high power/cost effective amplification needs.


    FEATURES
    • Four Output Channels

    • 4Ω, 8Ω, 70V, & 100V Operation

    • Balanced Inputs

    • Dante™ Accessory Card Slot

    • Fault Reporting

    • Remote Turn On

    • Detented Attenuators with Security Cover

    • Auto Sensing 100V-240V~ AC Mains Power Supply

    • Meets Energy Star Standards 1W Standby Mode


    SPECIFICATIONS
    Power Output
    70.7V 4 x 300W
    100V 4 x 300W
    4 x 300W
    4 x 300W
    NA
    8Ω Bridged NA
    1Ω RMS Power Output NA
    Frequency Response 20Hz - 20kHz
    THD <0.15%
    Channels Four
    Signal to Noise Ratio >70dB (A-Weighted)
    Connector Type Terminal Block & Phoenix
    Number of Fans 1 - Variable Speed
    BTU All Channels Driven AES 1486 BTU (70.7V, 120VAC)
    Max Current All Channels Driven Continuous 13.63A
    Rack Units 2 RU
    Height 3.5" (89mm)
    Width 19" (483mm)
    Depth 15" (381mm)
    Weight 21.4 lbs. (9.7kg)
    Finish Black
    Voltage Compatibility Universal

    SUPPORT FILES
    Owners Manual

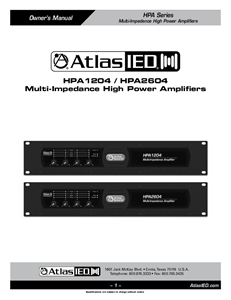

    HPA1204 Owners Manual
    Data Sheet

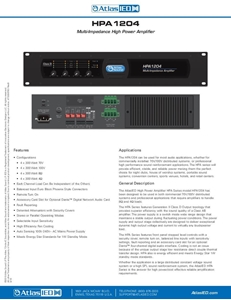

    HPA1204 Data Sheet
    CAD Drawing
    HPA1204 CAD Drawing
