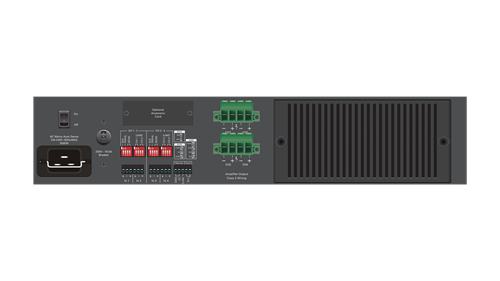

Four-Channel, 2600-Watt Commercial Amplifier

Availability: In stock
Your Price:
  • 8Ω Operation
  • 70V / 100V Operation
  • Dante enabled
  • Universal Power Supply

    The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 8 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any speaker load.

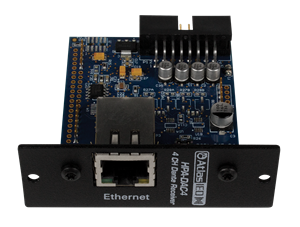

    The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2 or 4-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need.

    • Four Output Channels

    • 4Ω, 8Ω, 70V, & 100V Operation

    • Balanced Inputs

    • Dante™ Accessory Card Slot

    • Fault Reporting

    • Remote Turn On

    • Detented Attenuators with Security Cover

    • Auto Sensing 100V-240V~ AC Mains Power Supply

    • Meets Energy Star Standards 1W Standby Mode

    Power Output
    70.7V 4 x 650W
    100V 4 x 650W
    4 x 650W
    4 x 650W
    8Ω Bridged NA
    1Ω RMS Power Output NA
    Frequency Response 20Hz - 20kHz
    THD <0.15%
    Channels Four
    Signal to Noise Ratio >70dB
    Connector Type Terminal Block & Phoenix
    Number of Fans 1 - Variable Speed
    BTU All Channels Driven AES 2132.5 BTU (70.7V, 120VAC)
    Max Current All Channels Driven Continuous 26.9A
    Rack Units 2 RU
    Height 3.5" (89mm)
    Width 19" (483mm)
    Depth 15" (381mm)
    Voltage Compatibility Universal
    Weight 22 lbs. (10kg)
    Finish Black
    Warranty Period 36 months from date of purchase

    HPA2604 CAD Drawing HPA2604 CAD Drawing

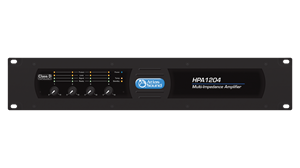

    HPA1204 Owners Manual (20 pages) HPA1204 Owners Manual (20 pages)
