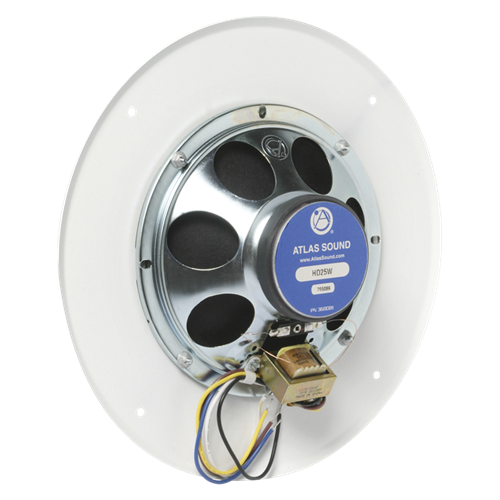

8" In-Ceiling Loudspeaker with 5-Watt 25V Transformer and 62-8 Baffle

  • UL Listed
  • CUL
  • 70V100VCAPABLE

    HD25W is a cost-effective 8" dual-cone loudspeaker assembly which delivers wide frequency response for general purpose voice and music reproduction.

    Unit is shipped complete with grille and 25V transformer factory wired to reduce field installation time and expense. HD25W model includes the industry favorite Model 62-8 grille. Model will accept optional protective enclosures and mounting accessories to meet installation and code requirements.

    10 oz. Magnet Offers Lower Frequency Response
    25 Volt Transformer Offers .5, 1, 2 and 5 Watt Taps

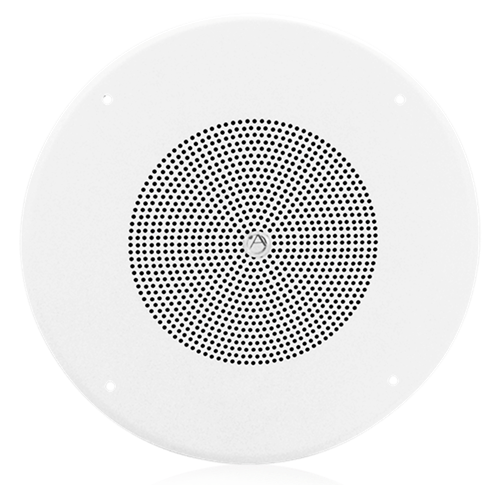

    Baffle is Industry Standard 62-8 with Baked on White Epoxy Enamel Finish
    Dual Cone Type Driver
    Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
    Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
    Sensitivity 97dB 1W/1m
    Speaker Package Includes Driver, Transformer, Baffle, and Hardware Bag
    UL1480 & UL2043 listed
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
    Data Sheet
    FD_HD_Datasheet (2 pages)
    Data Sheet
    FD_HD_Datasheet (2 pages)

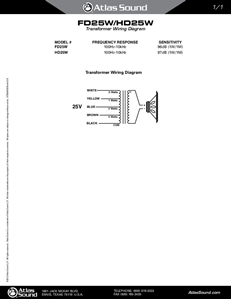

    Installation Sheet
