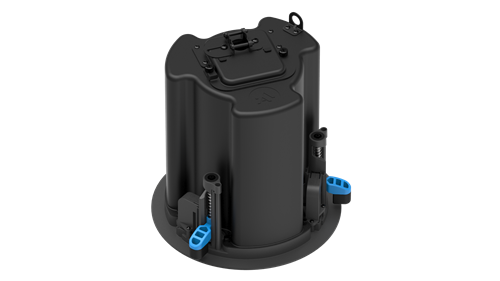

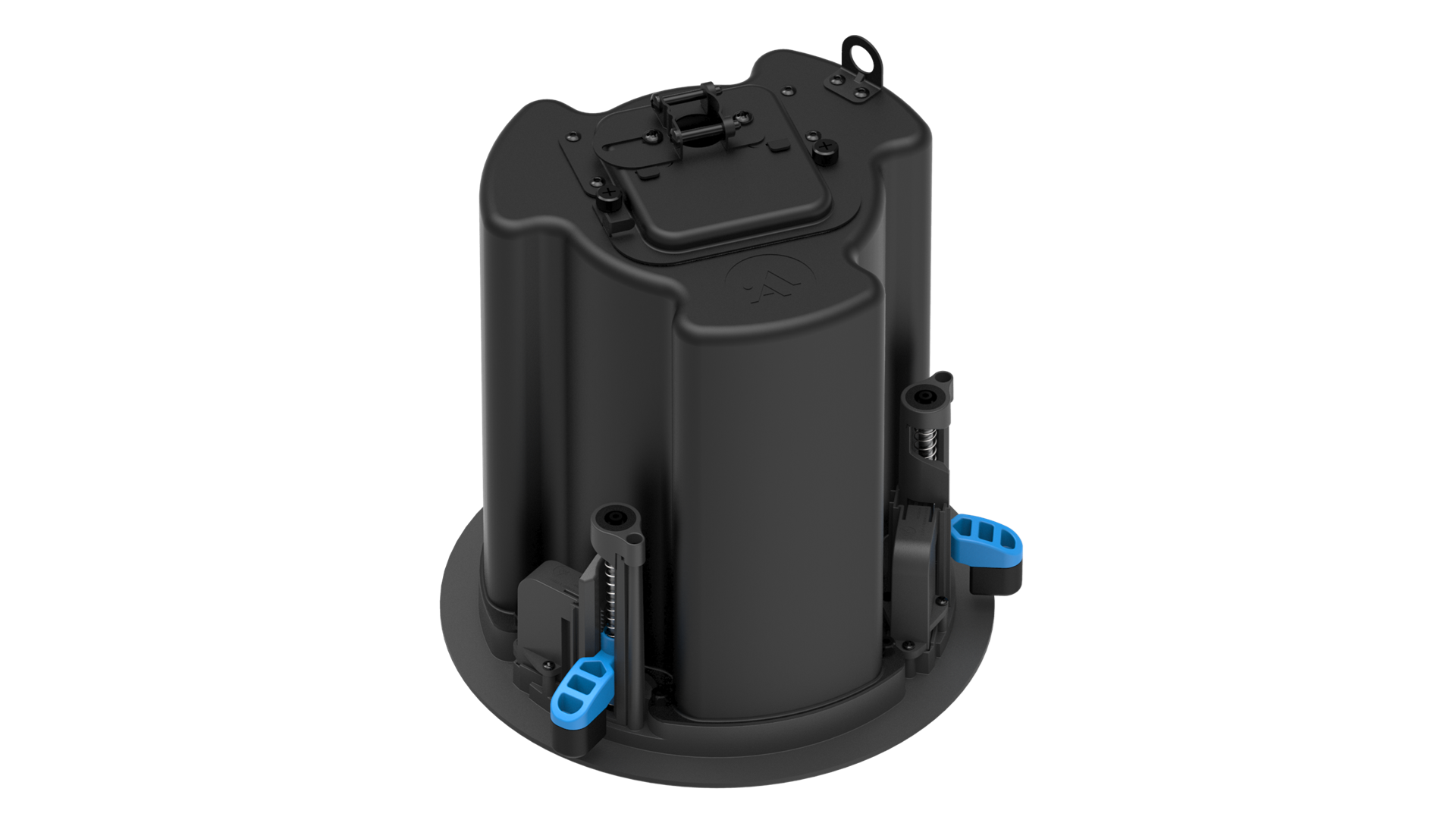

4" Premium Ceiling Speaker (Blind Mount)

FC-4T
Availability: In stock
Your Price:
$314.99/each
Must purchase in multiples of 2
    DESCRIPTION

    The IsoFlare™ FC-4T is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

    The IsoFlare™ FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare™ to the premium commercial space in an integrated package.

    Unlike most ‘coax’ offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

    The FC-4T exhibits surprising low end for its diminutive size.

    Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

    The FC-4T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

    Low frequency enhancement can be augmented with the FC-8ST ceiling subwoofer.

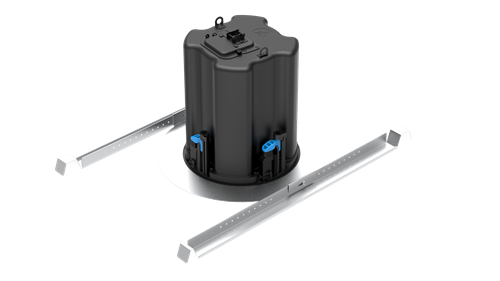

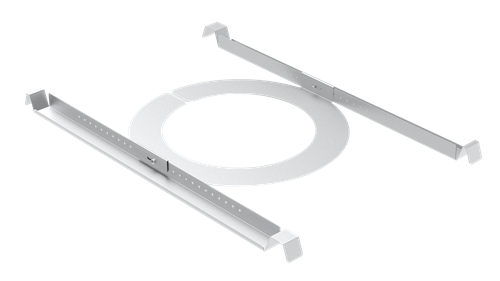

    The IsoFlare FC-4T is supplied with C-Ring and Tile Bridges.


    Features

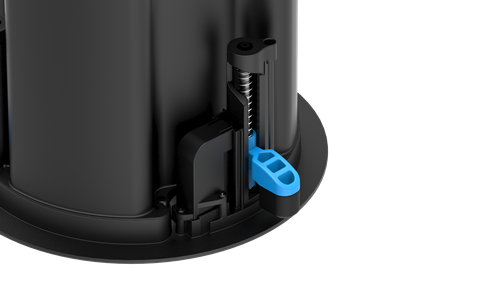

    • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation.

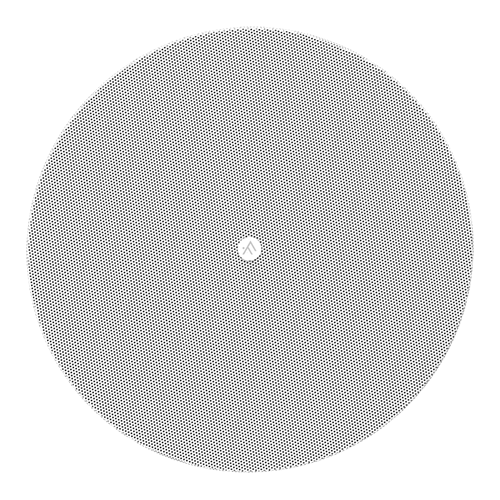

    • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.
    • Ferrofluid cooled titanium HF with neodymium magnet system.
    • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange.
    • Fluted Surround Technology – Conventional driver surround profiles can reflect energy back down the cone causing coloration.
    • Optimized smooth transition baffle (no sharp edges which cause
      diffraction).
    • Full bandwidth exceptionally low insertion loss 30W 70/100V transformer.
    • High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors).

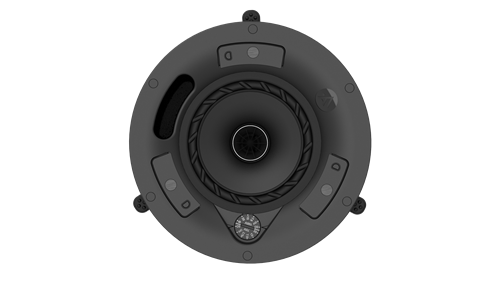

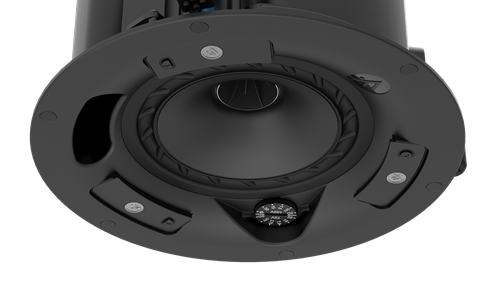

    • Easy Access Tap Rotary Selector Switch.
    • Enhanced voicing presets available via AtlasIED Atmosphere platform.

    SPECIFICATIONS
    Type Two-Way, Full Range, Ceiling Loudspeaker (Blind Mount)
    Frequency Range (-10dB) 62Hz - 30kHz
    Frequency Response (+/- 3dB) 80Hz - 22kHz
    System Sensitivity (1W @ 1m) 88dB
    Nominal Coverage Angle (-6dB) 100°
    Directivity Index (dB) 4.7
    POWER HANDLING
    Average 60W
    Programme 120W
    Peak 240W
    Recommended Amplifier Power 120W @ 8 Ohms
    Nominal Impedance 8 Ohms
    Transformer Taps - via rotary selector switch 30W, 15W, 7.5W, 3.8W ( 1.9W70V) & Low Z operation
    RATED MAXIMUM SPL
    Average 106dB
    Peak 112dB
    With Max. Transformer Tap - Average 104dB
    Warranty Period 60 months from date of purchase

    Applications
    • Boardrooms & Corporate Offices
    • Airports, Convention Centers, Hotels
    • Casinos
    • Houses of Worship
    • Retail Outlets, Shopping Malls
    • Museums
    • Lounges, Bars
    • Education Facilities
    • Cruise Ships
    • Courtrooms
    • Multizone Foreground Music & Paging Systems
