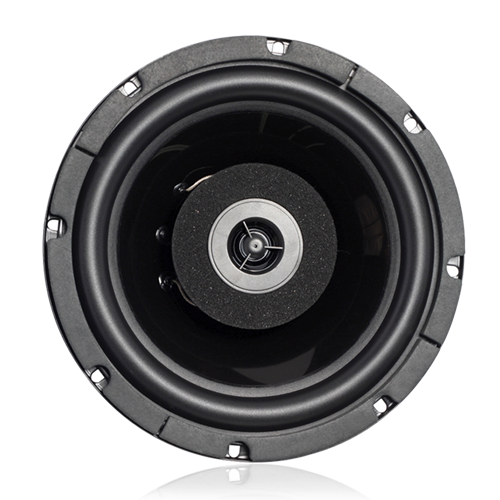

8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker

FA138
Availability: In stock
Your price (USD): $70.99
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 4OHM8OHMCAPABLE
    DESCRIPTION

    Model FA138 is AtlasIED's premium 8" coaxial speaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality.

    Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

    For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps.
    Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

    Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

    For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.


    FEATURES
    • 100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
    • Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring
    • Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 89.5dB Average, 93dB Peak
    Power Taps 8 ohms
    Frequency Response 75Hz - 20kHz
    Dispersion 110°
    Diameter 8 1/4" (20.955 cm)
    Depth 3 5/8" (9.144 cm)
    Shipping Weight 5.20 lbs (2.36 kgs)
    Safety Listed 1480 / 2043

    SUPPORT FILES
    Installation Sheet
    ATS000743 FA Series Install RevD
    Data Sheet
    ATS004120 FA138 Series Datasheet RevA
    CAD Drawing
    FA138 CAD File
