6" Coaxial In-Ceiling Speaker with 4-Watt 70V Transformer

FA136T47
Availability: In stock
Your Price:
$96.99
  • UL Listed
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

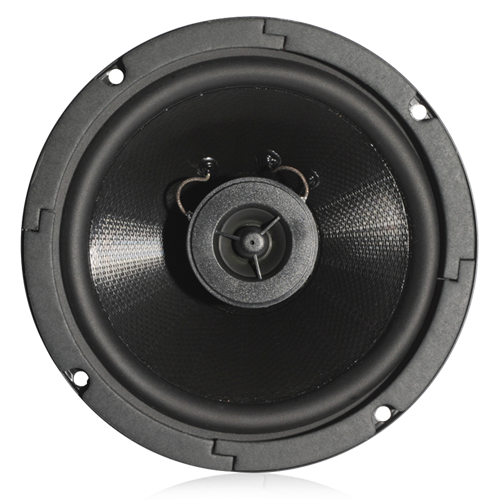

    Model FA136T47 is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assembly is manufactured with highquality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferro fluid-cooled voice coil for smooth response and excellent power handling capability.

    Model FA136T47 has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles.


    Features
    • Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
    • Front Loads into Specially Designed, Acoustically Matched Enclosure
    • Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles
    • Patented, Easy-to-Install Loudspeaker Mounting System
    • Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average, 91dB Peak
    Frequency Response 80Hz - 20kHz
    Power Taps .5, 1, 2, 4 Watts
    Dispersion 130°
    Depth 5 1/8" (13.0175 cm)
    Diameter 6 9/16" (16.67002 cm)
    Shipping Weight 3.67 lbs (1.66 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FA Series Install Sheet (1 page) FA Series Install Sheet (1 page)
    FA136 Series Datasheet (4 pages) FA136 Series Datasheet (4 pages)
