2' x 2' Drop Tile Speaker Package

DT22
Availability: In stock
Your price (USD): $101.99/each
Must purchase in multiples of 2
  • UL Listed
  • CUL
  • 70V100VCAPABLE
    DESCRIPTION

    Installer friendly AtlasIED DT22 provides clear paging and background music in a labor saving package. Ideal for use in shopping malls, department stores, and anywhere large quantities of speakers are to be utilized.

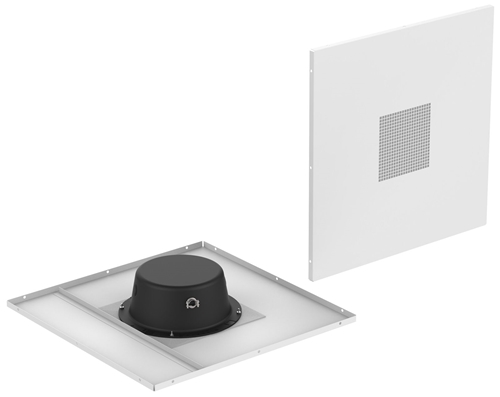

    The AtlasIED DT22 2' x 2' drop in speaker system simplifies speaker installation by providing an all in one speaker package in acoustic ceiling grids. The system includes the speaker / transformer, enclosure, and grille. Enjoy clear, crisp paging and background music from the installation friendly DT22 without compromising building cosmetics.


    FEATURES
    • All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce Installation Time and Costs
    • Solid White Panel with Punched Speaker Grille Blends in with Most Acoustic Ceiling Tiles
    • Standard 8" Speaker with Built-In 25V / 70.7V Transformer
    • UL1480 / UL2043

    SPECIFICATIONS
    Speaker 8" Dual Cone
    Frequency Response 100Hz - 5kHz
    70.7V Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°– 2kHz Octave Band (-6dB)
    Sensitivity 96dB
    Magnet Weight 10oz (283g)
    Length 23.9" (607mm)
    Depth 4.53" (115mm)
    Weight 11.3 lbs (5.125kg)
    Color White

    SUPPORT FILES
    Data Sheet

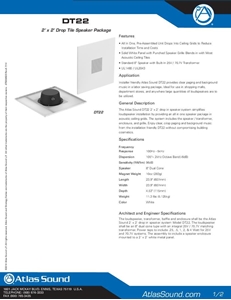

    ATS004929 DT22 Datasheet
    CAD Drawing
    DT22 CAD File
    Revit Drawing
    DT22 Revit Drawing
