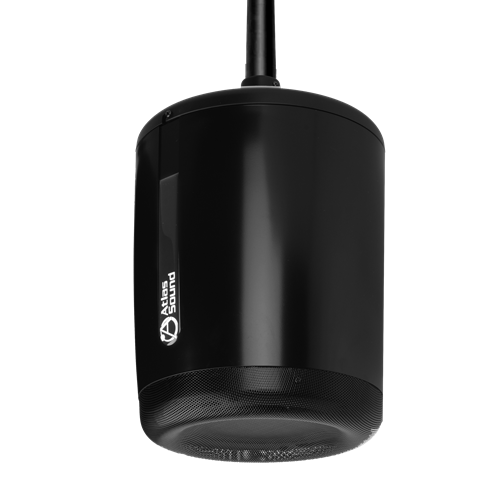

8” Pendent Mount PoE Dante Speaker System - Black

DA-PM8GD-B
Availability: In stock
MSRP (USD): $914.99
  • PoE+ Enabled
  • Dante Network Enabled
    DESCRIPTION

    The AtlasIED DA-PM8GD is an 8" indoor pendent mount IP PoE amplified loudspeaker featuring Audinate’s Dante digital audio transport platform. The DA-PM8GD supports a 8" efficient speaker design with a sensitivity of 98dB 1W/1m and a maximum output of 109dB.

    AtlasIED Dante™ PoE speakers consist of a speaker, amplifier, control board, and a Dante™ interface. The DA-PM8GD amplifier can produce up to 15-watts RMS of power in single channel mode or up to 2 x 10-watts in dual channel mode with IEEE 802.3at compliant PoE+ switches and 10-watts single channel mode or 2 x 5-watts in dual channel mode with PoE power. Interconnection is via a top panel mounted female RJ-45 connector. All models are compatible with Audinate’s Dante™ digital audio transport platform.

    The DA-PM8GD features user configurable amplifier modes, Input EQ, Level Control, and Masking with room tuning EQ. All controls are done via the AtlasIED IP Discovery and Control software. Through this software, the active IP speaker can be discovered on the network with the ability to custom name each speaker with a location tag for system management. The AtlasIED control software features an audible ping-me locator making it convenient to physically locate the speaker. System tuning can be done on an individual speaker or by an assigned group.

    The DA-PM8GD ships configured for single speaker use. It can also be configured to Dual mode to drive a second passive speaker of the same type like the PM8GD. When the DA-PM8GD amplifier is configured to Dual mode the amplifier power is split between the DA-PM8GD and passive speaker. The secondary speaker output shares the same factory EQ settings as the DA-PM8GD. Amplifier levels can be adjusted separately.

    Attaching the DA-PM8GD to most overhead surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self-gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3 /4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling material angle (Up to 45°).

    Either installation solution is discreetly implemented via the PM series innovative top cover design. This cap includes a cable access plug that is easily removed for down pipe mounting. The cover also completely conceals the Ethernet cable terminations, and the suspension anchor points.


    FEATURES
    • Extreme High Efficiency (98dB 1W/1m)
    • 8" LF Transducer
    • Mounting Options, Pole or Suspension Cable
    • Integrated PoE Amplifier
    • Secondary Amplifier Output for 8Ω Speaker
    • Audinate Dante Digital Audio

    SPECIFICATIONS
    Frequency Response 86Hz - 15.5kHz
    Dispersion 105˚ (800Hz - 4kHz)
    Sensitivity 96dB SPL Average
    Power Rating (PoE - IEEE 802.3AF) Single channel mode: 10W Max, Two channel mode: 5W Max plus 5W @ 8 Ohm Paralleled Output
    Power Rating (PoE+ - IEEE 802.3AT) Single channel mode: 15W Max, Two channel mode: 10W Max plus 10W @ 8 Ohm Paralleled Output
    THD <0.02%
    Connector Type RJ-45
    Height 16.62" (470mm)
    Diameter 12.25" (311mm)
    Weight 12.5 lbs (5.67kg)
    Shipping Weight 15.5 lbs (7.03kg)
    Safety Listed ETL Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

    SUPPORT FILES
    ATS006960C-DA-PM8GD-Install-Sheet.pdf (11 pages) 1 MB

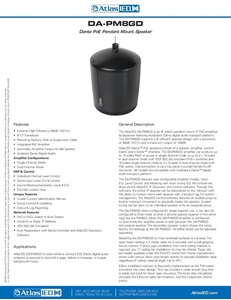

    DA-PM8GD Data Sheet (6 pages) 948 KB
