PoE+ Dante Outdoor Weather Resistant Horn Speaker

DA-APX

Availability: Call for Availability
Your Price:
$1,067.99
  • PoE+ Enabled
  • Dante Network Enabled
    DESCRIPTION

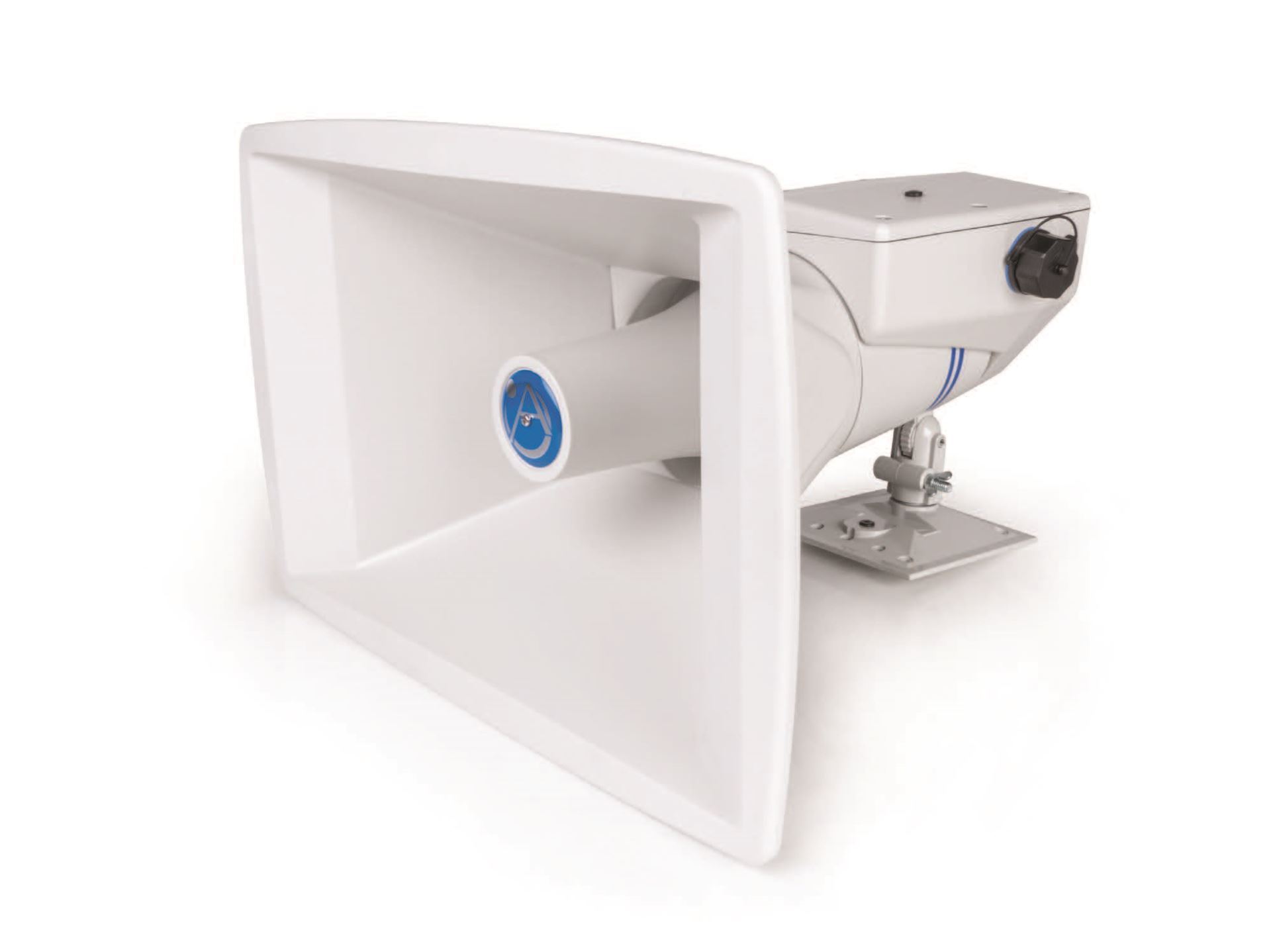

    AtlasIED DA-APX is a weather resistant IP PoE amplified constant directivity high-output horn featuring Audinate’s Dante digital audio transport platform. The DA-APX features a 60° x 40° constant-dispersion pattern across the controlled frequency band of 1.25-10 kHz. The rotating bell pivots in precise 15° increments for exact on-site positioning of projection angles. A triple lock security mounting method saves installation time and provides long-term stability.

    AtlasIED Dante™ PoE speakers consist of a speaker, amplifier, control board, and a Dante™ interface. The DA-APX amplifier can produce up to 20-watts RMS of power in single channel mode or up to 2 x 10-watts in dual channel mode with IEEE 802.3at compliant PoE+ switches and 10-watts single channel mode or 2 x 5-watts in dual channel mode with PoE power. Interconnection is via a top panel mounted female RJ-45 connector. All models are compatible with Audinate’s Dante™ digital audio transport platform.

    The DA-APX features user configurable amplifier modes, Input EQ and Level Control. All controls are done via the AtlasIED IP Discovery and Control software. Through this software, the active IP speaker can be discovered on the network with the ability to custom name each speaker with a location tag for system management. The AtlasIED control software features an audible ping-me locator making it convenient to physically locate the speaker. System tuning can be done on an Individual speaker or by an assigned group.

    The DA-APX ships configured for single speaker use. It can also be configured to Dual mode to drive a second passive speaker of the same type like the APX40N. When the DA-APX amplifier is configured to Dual mode the amplifier power is split between the DA-APX and passive speaker. The secondary speaker output shares the same factory EQ settings as the DA-APX. Amplifier levels can be adjusted separately.

    The DA-APX can be mounted in a variety of ways to meet the installation requirements. Incorporated is a base mount bracket that allows it to be mounted to a surface or to mounted to a beam or pole. The base can be mounted to a standard 1-gang, 2-gang, or 4 sq. E.O. box.

    IP-APX Rotation IP-APX Rotation IP-APX Rotation


    Features
    • Onboard DSP
    • Configured/controlled with AtlasIED Discover for DA Loudspeakers application
    • Controlled Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
      Controlled Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
    • Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
      Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
    • Hi Output 120dB Peaks
      Hi Output 120dB Peaks
    • Sturdy Die-Cast Base Includes Provisions for Flex Conduit
      Sturdy Die-Cast Base Includes Provisions for Flex Conduit
    • Internal PoE Amplifier
      Internal PoE Amplifier
    • Secondary Amplifier Output for 8Ω Speaker
    • Audinate Dante Digital Audio
      Audinate Dante Digital Audio

    SPECIFICATIONS
    Speaker Size 8" LF, 1" HF
    Frequency Response 400Hz - 7.5kHz
    Vertical Coverage 40˚
    Horizontal Coverage 60˚
    Sensitivity 107dB SPL Average (1W/1m)
    Power Rating (PoE - IEEE 802.3AF) Single channel mode: 10W Max, Two channel mode: 5W Max plus 5W @ 8 Ohm Paralleled Output
    Power Rating (PoE+ - IEEE 802.3AT) Single channel mode: 20W Max, Two channel mode: 10W Max plus 10W @ 8 Ohm Paralleled Output
    THD <0.02%
    Connector Type RJ-45
    Height 8.02" (204mm)
    Width 14.61" (371mm)
    Depth 13.86" (352mm)
    Weight 6.45 lbs (2.92kg)
    Shipping Weight 7.75 lbs (3.51kg)
    Safety Listed ETL Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

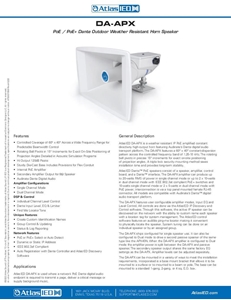

    DA-APX Data Sheet (6 pages) DA-APX Data Sheet (6 pages)
    Discover for DA App v1.3.8.3 Discover for DA App v1.3.8.3
    IP-APX Installation Sheet (7 pages) IP-APX Installation Sheet (7 pages)
