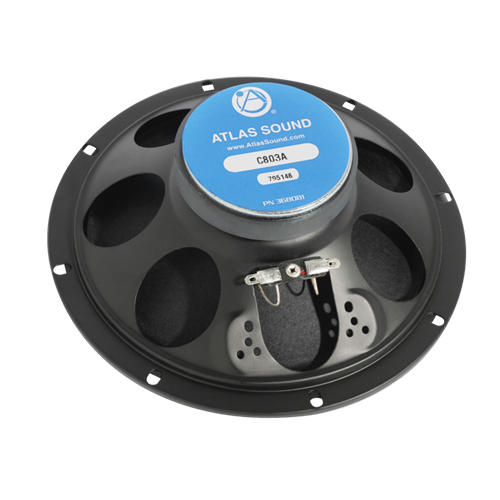

16-Watt, 8 Ohm 8" In-Ceiling Coaxial Loudspeaker

C803A
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 8Ω Operation

    Model C803A. High-quality, 16-watt Model C803A utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance.

    This coaxial loudspeaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

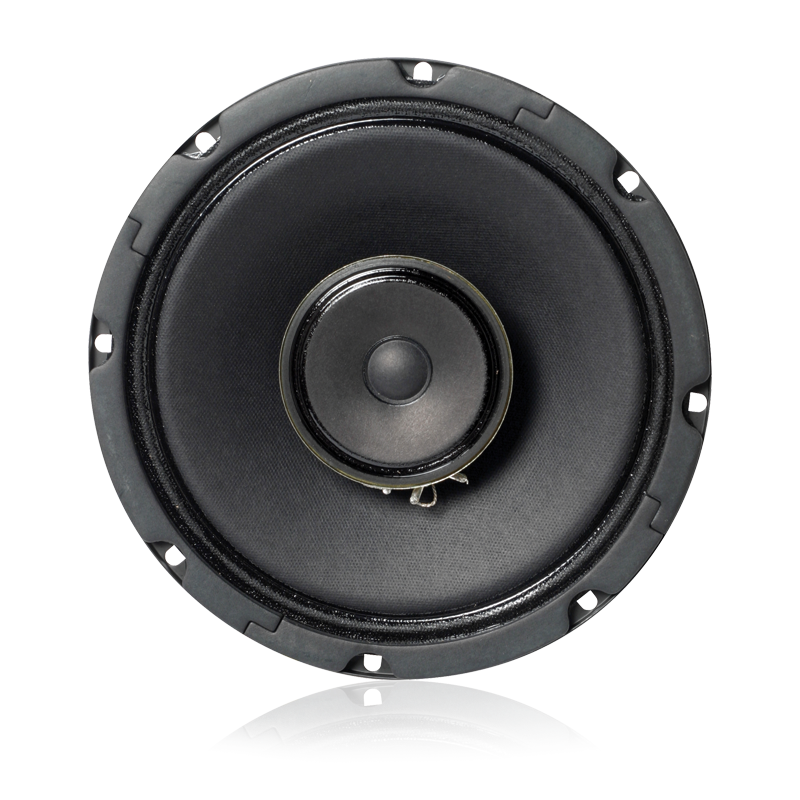

    The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).

    Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

    Features
    Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
    Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
    Offers Proven Performance with Wide Frequency Response
    Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
    Tech Specs
    Speaker Type Treated Paper
    Sensitivity 98dB (peak), 95dB (avg)
    Frequency Response 70Hz - 15.5kHz
    Power Taps 8 Ohms
    Dispersion 120°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.17 lbs (1.44 kgs)
    Safety Listed 1480
    Support Files
    Data Sheet ATS004084 C803A Series Datasheet RevA (5 pages) View | Download
    EASE File Download
    Installation Sheet ATS004345 C5A-C10A-C803A Install Sheet RevC (1 page) View | Download
