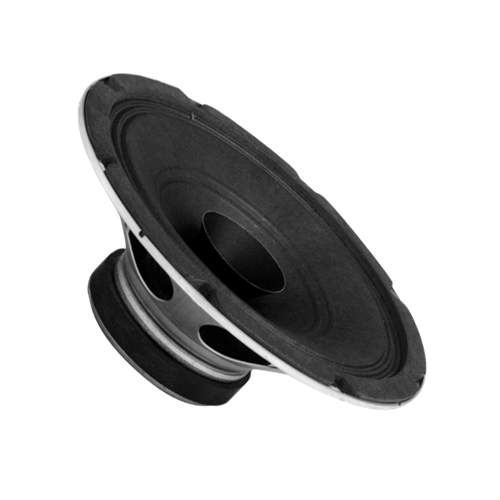

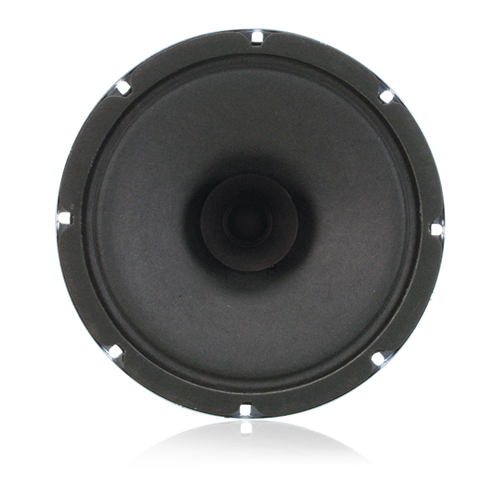

8" Dual Cone In-Ceiling Loudspeaker with 5-Watt 25V Transformer and 10oz Magnet

C10AT25
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL

    Model C10AT25 is a dual cone, 25-watt 8" (205mm) loudspeaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

    Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°.

    It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

    Features
    Acoustically Proven, General Purpose 25-Watt Loudspeaker
    Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
    Includes LT-25 Factory-Installed Line-Matching Transformer
    Mounts a Wide Selection of Atlas Sound Baffles
    Tech Specs
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Dispersion 105°
    Power Taps .5, 1, 2, & 5 Watts
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.00 lbs (1.36 kgs)
    Support Files

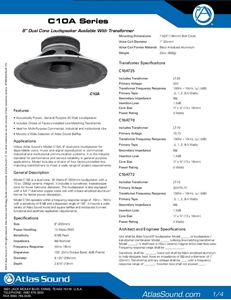

    Data Sheet ATS002420 C10A Series Datasheet RevB (4 pages) View | Download
    EASE File Download
    Installation Sheet ATS004345 C5A-C10A-C803A Install Sheet RevC (1 page) View | Download
