BlueBridge® Expansion I/O Box with Dante™

BB-EB1616DT
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $3,295.99
  • Network Ready
  • Onboard DSP
  • OS Control
  • Dante enabled
    DESCRIPTION

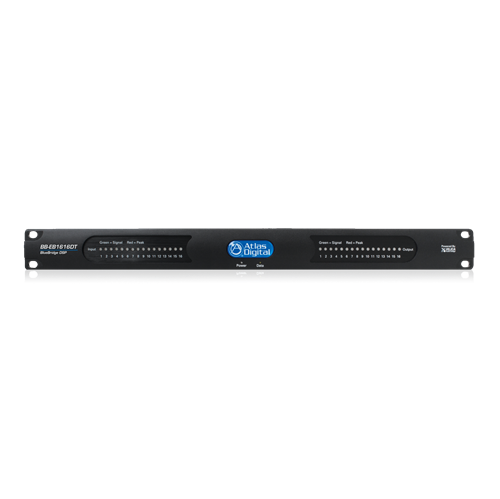

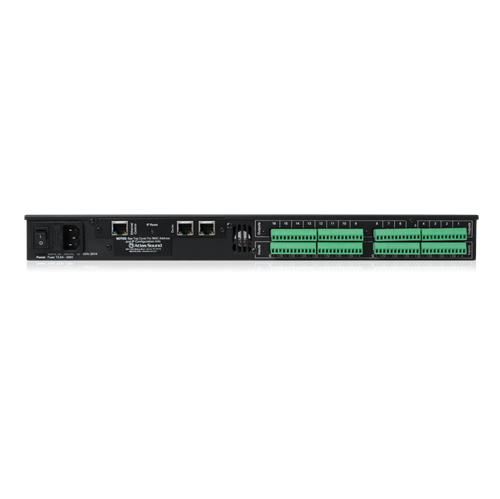

    The BB-EB1616DT is a one rack space unit device with LED indicators for each channel, network LED’s and power LED’s on the front panel. On the rear there are dual RJ-45 connectors for Dante™, 16 balanced mic/line inputs and 16 balanced line level outputs all using Euro Block/Phoenix style connectors.  The EB1616DT software allows you to manage inputs and outputs as required from either BlueBridge® or EB1616 end of the system.The BB-EB1616DT can be incorporated into any BlueBridge® system as an I/O expander or it can be used as a standalone digital snake on networks featuring Dante™.


    FEATURES
    • 16 x 16 Dante™ Network I/O
    • 16 x 16 Analog I/O
    • Selectable Mic/Line Inputs
    • Premium Grade THAT® Corp Microphone Preamps
    • 48V Phantom Power
    • 48kHz Sampling
    • 40 Bit Floating DSP Engine
    • High Performance 24 Bit Converters
    • Ethernet Network Connectivity

    SPECIFICATIONS
    Input impedance >10kΩ
    CMRR >100dB (50Hz-10kHz)
    Maximum Level +20dBu
    CMRR >100dB (50Hz - 10kHz)
    Mic Gain 0/+40dB Steps
    Frequency Response 20Hz - 20kHz
    Crosstalk <-100dB
    Distortion .002% (1kHz @ +40dBu))
    Signal LEDs 1 Dual Color Per Channel
    Status LEDs Power and Data
    Analog I/O Phoenix Plug-in 3.5MM
    Ethernet Network I/O RJ45 (CAT5)
    Power 90-240VAC (50-60Hz)
    Width 19" (483mm)

    SUPPORT FILES
    Software/Firmware
    BlueBridge Designer 5.4.1
    Software/Firmware
    BlueBridge BluePanel v5.4.1 (All Units)
    Software/Firmware
    BlueBridge EB1616DT Firmware v5.4.1
