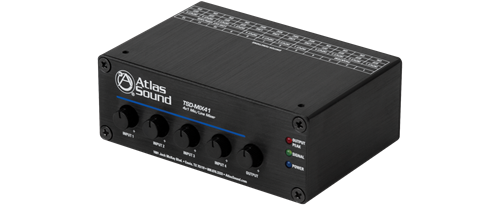

4 x 1 Mic/Line Mixer

Availability: Call for Availability
Your Price:
  • Power Supply Sold Separately
  • CE

    The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with AtlasIED amplifiers. Other applications include restaurants, conference rooms, and schools.

    Each input is mic/line switchable with phantom power provided for condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    • Four (4) Balanced Mic/Line Inputs
    • Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
    • Up to 50dB Mic Gain Per Input
    • 12dB/Octave Low Cut Filter @ 125Hz

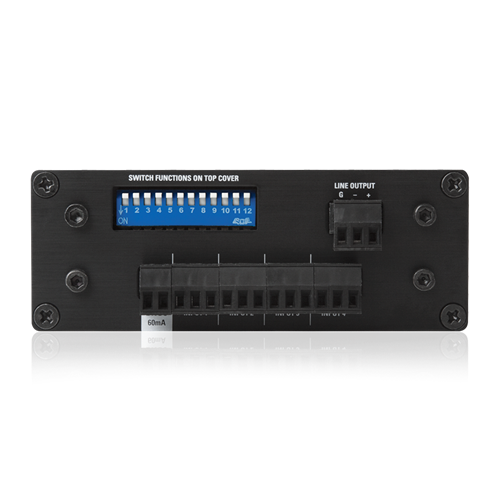

    • Balanced Line Output

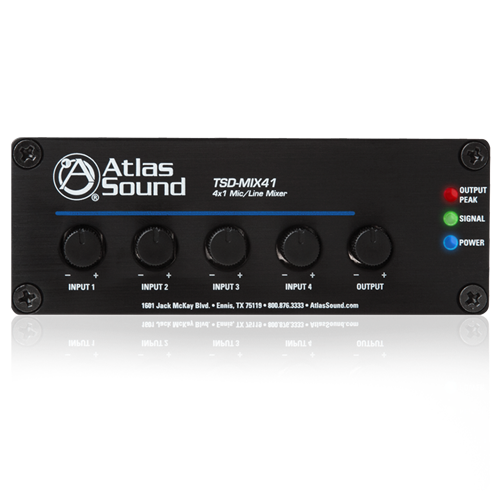

    • Input Peak & Signal Indicator LED's
    • High Gain Output for Driving Long Balanced Lines
    • Separate Ground Connections
    • Removable Phoenix Style I/O Connectors
    • Security Covers Included for All Front Panel Controls
    • Power Supply Sold Separately
    • Energy Efficient

    Input impedance 1.2KΩ Balanced, 600Ω Unbalanced
    THD .06% & 1kHz
    Phantom Power 24VDC Defeatable
    Low Cut Filter 125Hz/12dB Defeatable
    Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
    Mic Input Level 46dB Gain 10mV (-40dBV) Balanced
    Output impedance 300Ω Balanced, 150Ω Unbalanced
    Line Output Level 1V (0dBV) In
    Frequency Response 20Hz - 20kHz (+/-1dB)
    Signal to Noise Ratio Line to Line 85dBV
    Signal to Noise Ratio Mic to Line 78dBV
    24VDC Power Requirements 60mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    Voltage Compatibility 24V
    Warranty Period 36 months from date of purchase

    TSD Series CAD Drawing TSD Series CAD Drawing

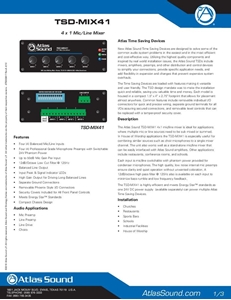

    TSD-MIX41 Datasheet (3 pages) TSD-MIX41 Datasheet (3 pages)

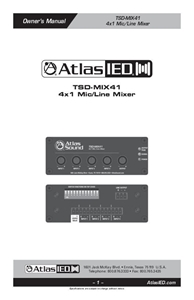

    TSD-MIX41 Owners Manual (12 pages) TSD-MIX41 Owners Manual (12 pages)
