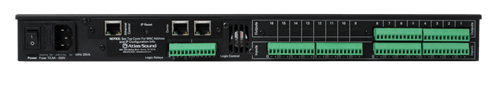

16 Input x 8 Output - Networkable DSP Device with Acoustic Echo Cancellation

BB-168AECDT
  • Windows Compatible
  • Network Ready
  • Onboard DSP
  • iOS Control
  • Android Control
  • Dante enabled
  • Acoustic Echo Cancelling

    The BlueBridge® BB-168AECDT networkable DSP devices with Acoustic Echo Cancellation and Dante™ is a powerful and flexible tool offering mission critical solutions to successfully satisfy your customers’ teleconferencing and video conferencing needs. Engineered to strict standards with the highest quality internal components, BlueBridge® DSP solutions provide pure clean analog and digital audio, Ethernet connectivity for cost effective TCP/IP control and open architecture with Drag and Drop programmability.  AtlasIED offers the widest range of open architecture DSP platform I/O configurations of any manufacturer in the industry, all configured using the same software.

    The BlueBridge® AEC model with the Dante™ digital audio network chipset offers up to 16 channels of self-configuring, true plug-and-play digital audio over an Ethernet network providing the highest quality audio over existing network infrastructure.


    FEATURES
    Wide-Band Acoustic Echo Cancellation
    Dante™ Ethernet Based Digital Audio
    True Plug-and-Play Digital Audio Networking
    16x8 I/O Configuration
    Open Architecture Programmability
    High Quality THAT® Corporation Mic Preamps
    TCP/IP Third Party Control Capability
    Four Logic Inputs & Outputs
    48kHz, 40 Bit Floating DSP Engine
    Remote Control Using Optional Wall Plates
    Output Peak & Signal Indicator LEDs
    Safety Listed to UL60065
    SPECIFICATIONS
    Input Type Mic or Line, GUI Selectable
    Power Requirement 90-240VAC (50-60Hz)
    Input Gain -40 to +15dB in 0.25 dB steps
    Phantom Power 48V, GUI Enabled
    Output Type Line
    Output impedance 50Ω
    RAID 40-Bit Floating Point
    Sample Rate 48kHz
    Analog Converters High Performance 24-Bit
    Width 19" (483mm)
    Height 1.75" (44mm)
    Depth 9" (229mm)
    SUPPORT FILES
    Owners Manual BlueBridge Designer II User Guide (77 pages) View | Download

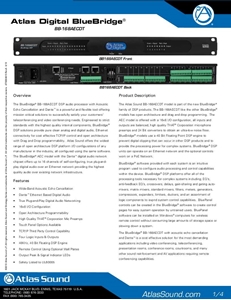

    Data Sheet ATS004615 BB-168AECDT Datasheet (1 page) View | Download
    Software/Firmware BlueBridge Designer 5.4.1 Download
    Software/Firmware BlueBridge BluePanel v5.4.1 (All Units) Download
    Software/Firmware BlueBridge BB-168AECDT Firmware v5.4.1 Download
