Garden Speaker (Short Base) 70.7V

ATS183GS
    DESCRIPTION

    ***Model has been replaced by GSS-G*****

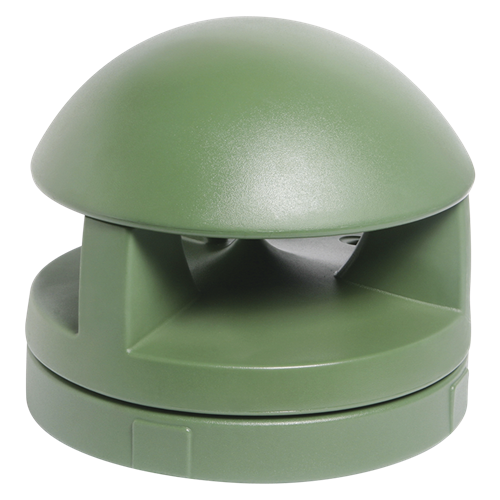

    The AtlasIED ATS183GS garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.
    The AtlasIED ATS183GS garden speaker is designed to blend into any environment.  This model includes a short base for surface mounting. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer. This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The ATS183GS Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern. The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.


    FEATURES
    • Available in a Green Finish
    • Convenient, externally adjustable 8, 16 and 32 watt taps in 70 Volt configuration
    • Revolutionary two-piece design allows for two-phase installation
    • Rugged construction can support up to 250 lbs.

    SPECIFICATIONS
    Depth 17 5/8" (44.7675 cm)
    Sensitivity 83.5dB 1W/1M (Half Space Ref)
    Diameter 15 1/8" (38.4175 cm)
    Shipping Weight 19.20 lbs (8.71 kgs)
    Frequency Response 43Hz to 20kHz (±7dB)
    Power Taps 8, 16 & 32
    Speaker Type Deck-mount
    Dispersion 360°H x 50°V

    SUPPORT FILES
    IN115606 (1 page) 46 KB
    SL1.1701.PDF (2 pages) 72 KB
    SL1.1701.PDF (2 pages) 72 KB
    SL1.1701.PDF (2 pages) 72 KB
    SL1.1701.PDF (2 pages) 72 KB
    HT327 Install Sheet (1 page) 2 MB

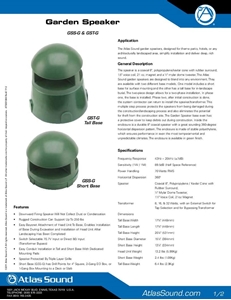

    GSS-G & GST-G Garden Speaker Datasheet (2 pages) 281 KB
